Four-wheel Capping

Automatic Four-Wheel Servo Capping Machine For Screw Caps And Pump Caps

Servo-controlled four-wheel capping solution for stable side tightening, fast changeover and wide bottle compatibility.

Get A Quote Send Bottle & Cap Details View Configurations Download Datasheet

Machine Overview

What Is This Machine Used For?

Automatic Four-Wheel Servo Capping Machine

Four-wheel Capping

Stable side tightening for common cap applications

Four-wheel servo capping machine tightens caps from the side using multiple capping wheels. It is suitable for many screw cap applications where stable tightening and fast adjustment are required.

Four-wheel TighteningFast ChangeoverScrew CapsWide Compatibility

Cap And Bottle Compatibility

Screw Cap, Pump Cap And Bottle Examples

These examples show common bottle and closure formats for four-wheel side tightening. Standard screw caps are the primary application; selected pump caps require sample testing.

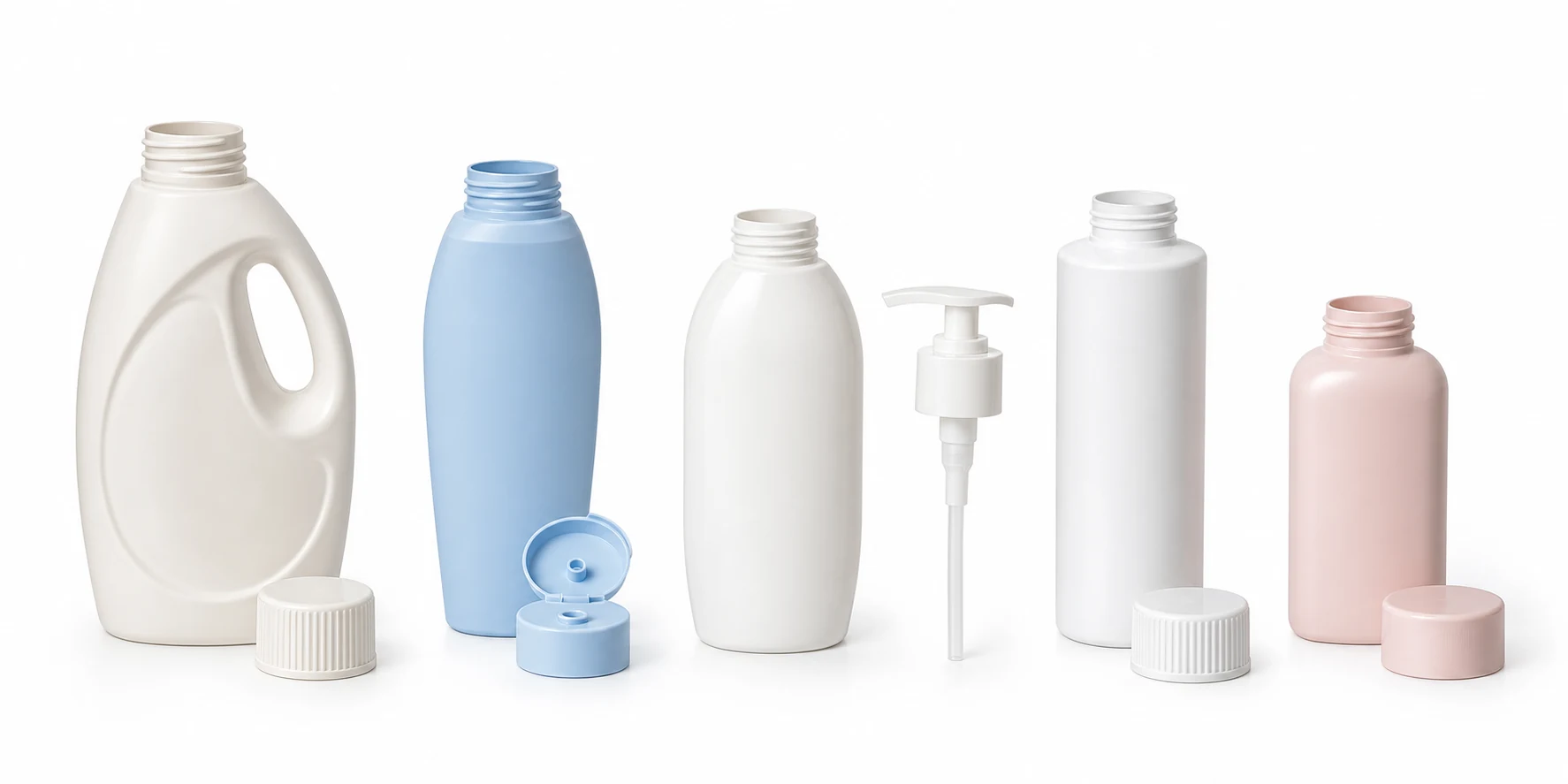

Detergent, shampoo, lotion, chemical and personal care bottles with screw, flip-top and tested pump closures for four-wheel capping — Actual cap diameter, cap height, thread profile and bottle stability determine the wheel spacing, side belts, guides and torque settings. Pump closures must be confirmed with physical samples.

Detergent BottleRibbed screw cap

Shampoo BottleFlip-top screw closure

Lotion BottlePump cap after testing

Chemical BottleStandard flat screw cap

Personal Care BottleRound screw closure

Cap Compatibility

Suitable And Not Recommended Caps

Suitable Caps

Standard screw caps
Some pump caps after testing
Daily chemical caps
Food and beverage caps after testing
Chemical bottle caps

Not Recommended For

Trigger sprayers requiring special orientation
Press-fit caps
Very fragile caps without testing
Caps with unusual side shape
Caps requiring top chuck gripping only

Machine Configurations

Four-Wheel Servo Capping Machine Configurations

Automatic Four-Wheel Servo Capping Machine

Four-wheel side capping

Cap Diameter22-110mm

Bottle Height10-60mm

Speed60 Bottles/Min

Heads4

Capping Features

Cap TypeStandard flat caps, pump caps

MethodFour-wheel side capping

Torque ControlPLC setting

Cap PlacingLinear capping

Cap SortingVibratory bowl / cap elevator

Auto Cap FeedingYes

Bottle & Application

Bottle TypeRound / flat bottles

Suitable ClosureStandard flat caps, pump caps

IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine Specification

AutomationFully automatic

Machine304 stainless steel

Voltage380V

Power1.2 kW

Air Pressure0.6-0.8 MPa

Size800 x 750 x 1700mm

CustomizationYes

Configuration Logic

What Should Be Confirmed Before Selection?

Same Core Structure

Four-wheel side tightening
Bottle side holding
PLC + HMI control
Adjustable capping wheels
Line connection capability

Need To Confirm

Cap diameter and height
Bottle shape and stability
Required torque
Changeover frequency
Target speed

Bottle And Line Matching

Recommended Bottle Types And Line Connection

Recommended Bottle Types

Round bottles
Flat bottles with side holding
Daily chemical bottles
Beverage bottles after testing
Chemical bottles
Stable plastic bottles

Bottle / Cap Matching Notes

Bottle Or Cap Type	Recommended Structure
Round bottles	Side belts and bottle positioning
Flat bottles	Bottle holding and anti-rotation guides
Pump heads	Pump head sorting, feeding and placing; use a separate tightening station when required
Trigger sprayers	Sprayer orientation and special grippers
Press caps	Pressing head and bottle support

Working Process

How The Four-Wheel Servo Capping Machine Works

Step 01Bottle feeding

Step 02Cap delivery

Step 03Bottle side holding

Step 04Wheel tightening

Step 05Torque control

Step 06Cap inspection

Step 07Bottle output

Step 08Labeling connection

The capping machine can work as a standalone unit, or connect with filling, labeling and conveyor systems to build an automatic production line.

Capping Method Value

Why Choose Four-wheel Capping?

Main Advantages

Stable side tightening
Fast adjustment for different caps
Good for many screw caps
Suitable for inline production

Production Benefits

Wide bottle compatibility
Easy to connect with production lines
Useful for factories with multiple cap sizes
Can reduce changeover time

Method Comparison

Comparison With Other Capping Methods

Capping Method	Best For	Selection Note
Swing Arm Capping	Round screw caps, medium-speed lines	Flexible solution for standard caps
Linear Capping	Continuous screw cap tightening	Good for stable inline production
Tracking Capping	Higher speed lines	Reduces bottle stop time
Pump Head Feeding & Placing	Lotion pump and shampoo pump caps	Sorts and places pump heads before a separate tightening station
Trigger Sprayer Capping	Sprayer caps for cleaning bottles	Designed for long trigger heads
Four-wheel Capping	Screw caps and some pump caps	Stable side tightening and fast changeover
Press Capping	Press-fit caps	Suitable for pressing instead of thread tightening

Real Machine Video

Real Machine Videos

Machine Test Video

Automatic Four-Wheel Servo Capping Machine Running Test Video

Watch a real Automatic Four-Wheel Servo Capping Machine test with cap feeding, placing and tightening process.

After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your Automatic Four-Wheel Servo Capping Machine For Screw Caps And Pump Caps. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

Send Project Details View Information Checklist

Recommended configurationMachine type, head or station quantity and required options.
Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
Written quotationConfirmed scope, available options, exclusions and commercial terms.
Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.

Engineering Definitions

How To Read The Published Automatic Four-Wheel Servo Capping Machine For Screw Caps And Pump Caps Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Bottle and cap range

Published dimensions are selection references. Neck finish, cap geometry, bottle support and physical samples control final approval.

Heads or stations

The listed quantity describes the configured capping positions; the cap-feeding method remains part of the system design.

Speed basis

A sustained bottles-per-minute target requires the real cap, bottle, feeder and upstream spacing conditions.

Closure result

Placement, tightening, pressing or torque checks use an agreed method and supplied package samples during FAT.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

Approved general arrangement or layout
English operation manual
Electrical diagram
Pneumatic diagram where applicable
PLC program backup
Agreed FAT criteria and record
Operation training
Recommended spare-parts list

1 yearWarranty

Within 2 hoursOnline response

Remote + onsiteCommissioning options

Within 7 daysCommon spares dispatch

Download Engineering Datasheet Review Factory Acceptance Review engineering evidence

FAQ

Common Questions Before Buying

What is four-wheel capping best for?

It is suitable for many standard screw caps that can be tightened from the side.

Can it handle pump caps?

Some pump caps may be suitable after testing. A dedicated feeding and placing unit may be required before the tightening stage.

Is changeover fast?

Yes. Four-wheel capping is commonly selected for easier adjustment.

Can it connect with filling and labeling?

Yes. It can be integrated with automatic lines.

Do you need samples?

Yes. Bottle and cap samples help confirm wheel position and torque.

Back To Capping Machines Send Inquiry

Buyer Selection Guide

Automatic Four-Wheel Servo Capping Machine Selection Answers For Buyers

Best Used For

Screw caps, wide caps, jars, round bottles and daily chemical or personal care packaging lines.

When To Choose It

Choose it when the cap can be tightened by side wheels and the buyer wants a stable linear capping solution.

Not Recommended For

Not recommended for caps that require special orientation, pump tubes, trigger sprayers or press-only caps without different tooling.

Before Quotation

Cap diameter, cap height, bottle diameter, bottle height, cap material, bottle stability and target speed.
