Customized capping machines for screw caps, pump heads, trigger sprayers and special caps. The capping solution is selected by cap type, cap diameter, bottle shape, thread structure, torque requirement and production speed.
Choose the operation before choosing the machine: pump-head feeding and placing positions the pump in the bottle, screw tightening turns the threaded closure to the required torque, and press capping pushes a press-fit closure into position. These operations are not interchangeable; one line may need more than one station.
| Closure / Required Operation | Recommended Capping Solution | Notes |
|---|---|---|
| Screw Cap | Linear Capping Machine / Swing Arm Capping Machine | For regular threaded caps on round, flat or square bottles. Confirm whether the quoted configuration includes cap feeding and placing, as well as tightening. |
| Pump Head Placement | Automatic Pump Head Feeding & Placing Machine | Feeds and places the pump head, guiding the dip tube into the bottle. It does not perform final screw tightening. Confirm pump orientation, dip-tube length and stiffness, bottle-neck clearance and the downstream tightening station. |
| Pump Head Tightening | Automatic Four-Wheel Capping Machine | For suitable threaded pump collars after the pump has been placed. Confirm wheel access to the collar, bottle holding and required torque with actual samples. Not every pump shape is suitable; automatic pump loading requires a separate feeding and placing stage. |
| Trigger Sprayer | Trigger Sprayer Capping Machine | Usually requires orientation control and stable bottle holding |
| Press-fit Cap | Chain-Plate Press Capping Machine | For press-fit caps or inner plugs, not threaded closures that need torque. Confirm the required seating depth, pressing force and bottle support with actual samples. |
| High-speed Line | Tracking Capping Machine | For continuous production lines where bottles should not stop frequently |
| Wide Compatibility | Four-Wheel Servo Capping Machine | Suitable for many regular screw cap bottles with adjustable wheels |
Different caps require different feeding, placing and tightening structures. We recommend the suitable capping machine from closure and bottle details, target speed and line layout. Physical items are requested later when required.

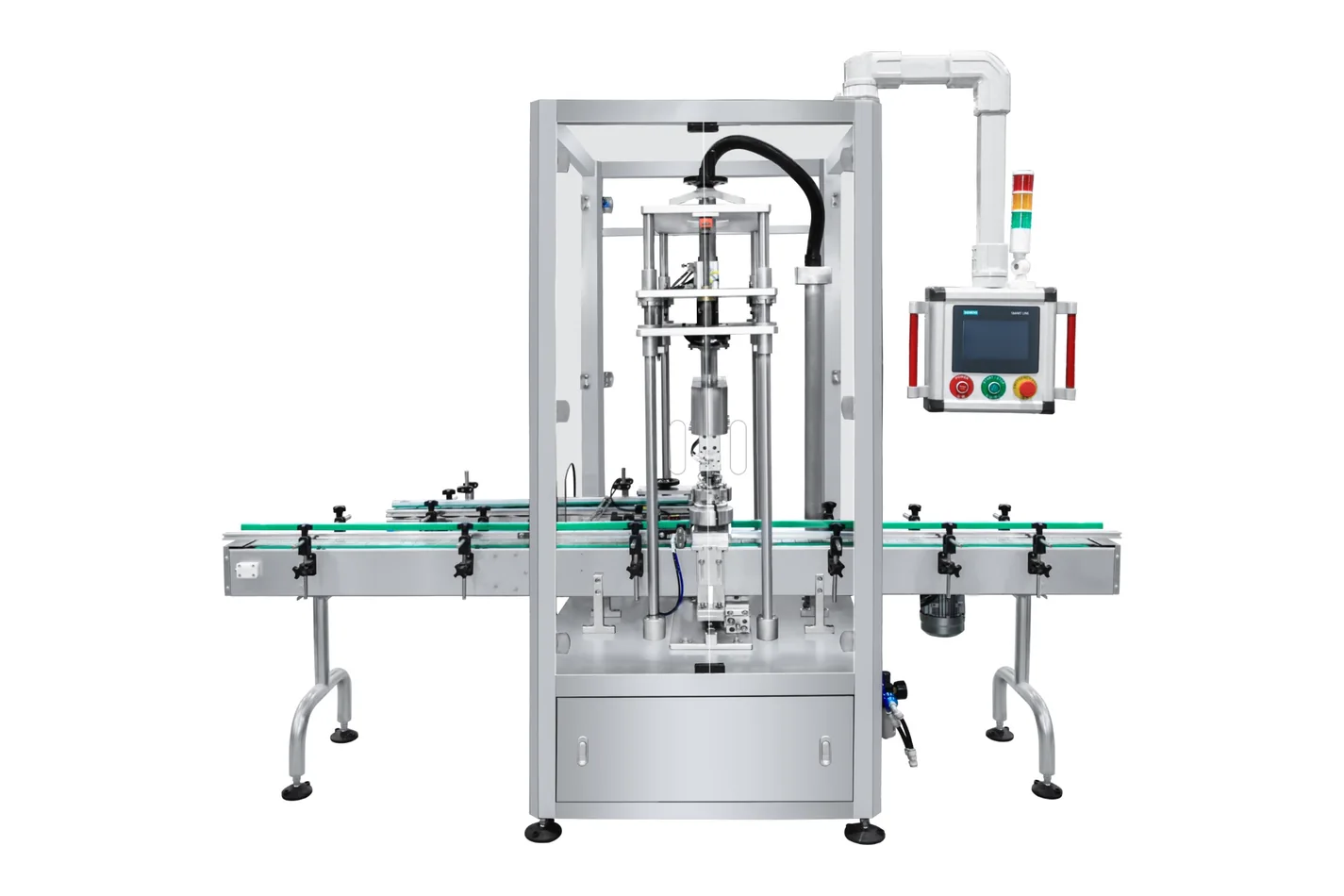

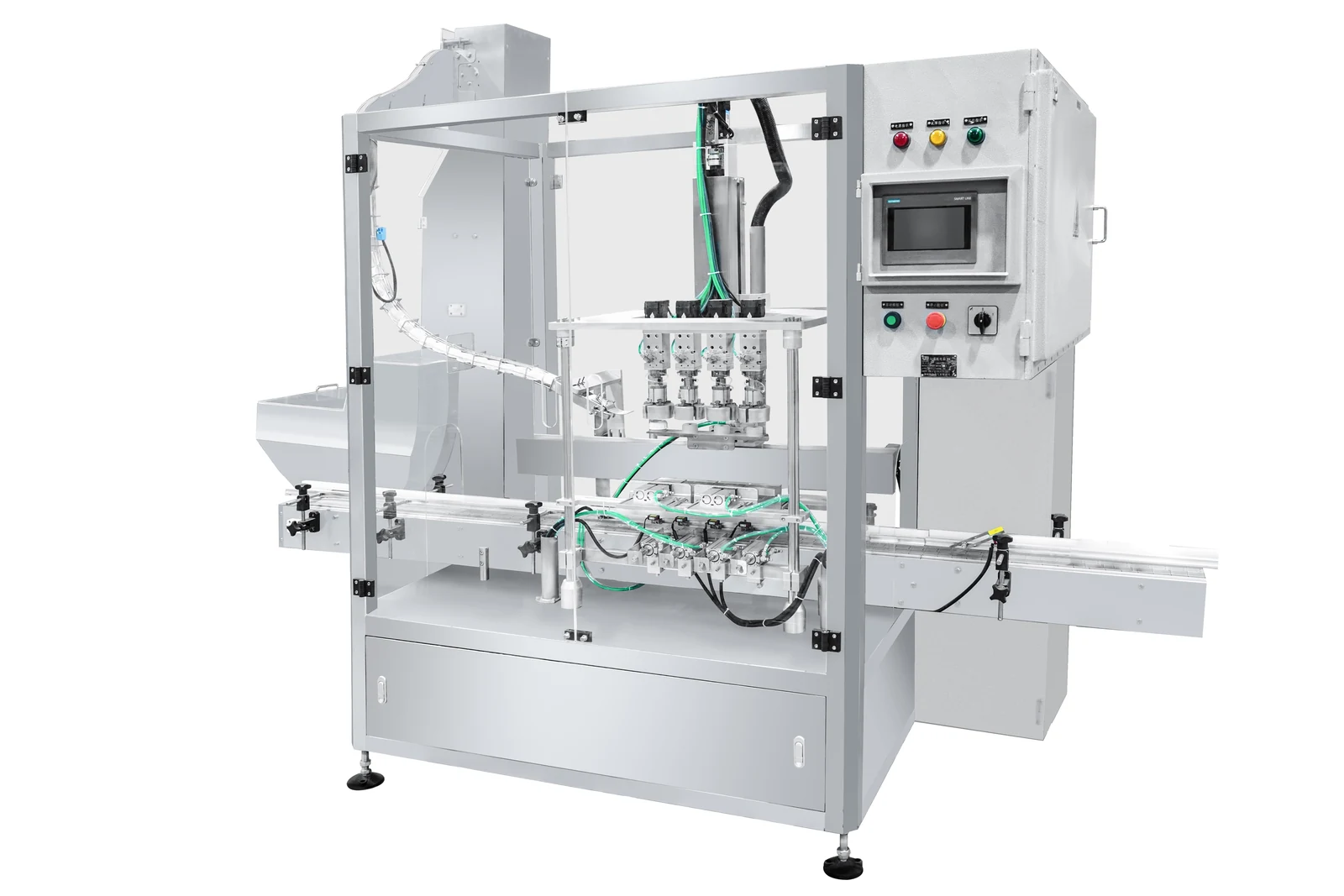

Automatic cap pickup, placement and tightening platforms for sample-matched threaded and flat round closures.
Automatic swing arm capping solution for round caps, offering stable tightening and easy operation for medium-speed production lines.

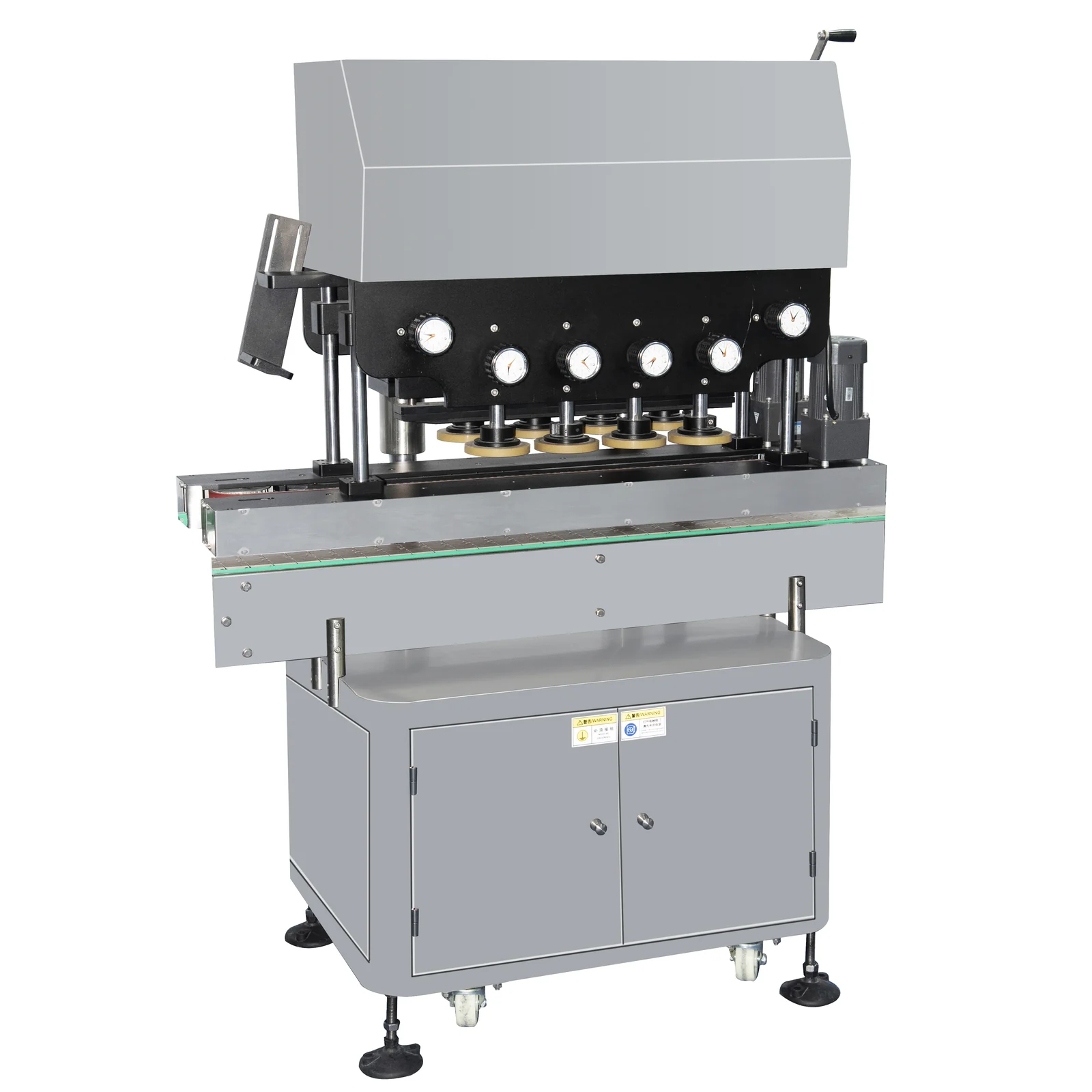

Automatic linear capping machine for continuous screw cap tightening, suitable for standard bottle lines that need stable output and easy integration.
Continuous motion tracking capping solution for higher speed lines, reducing bottle stop time and improving line efficiency.

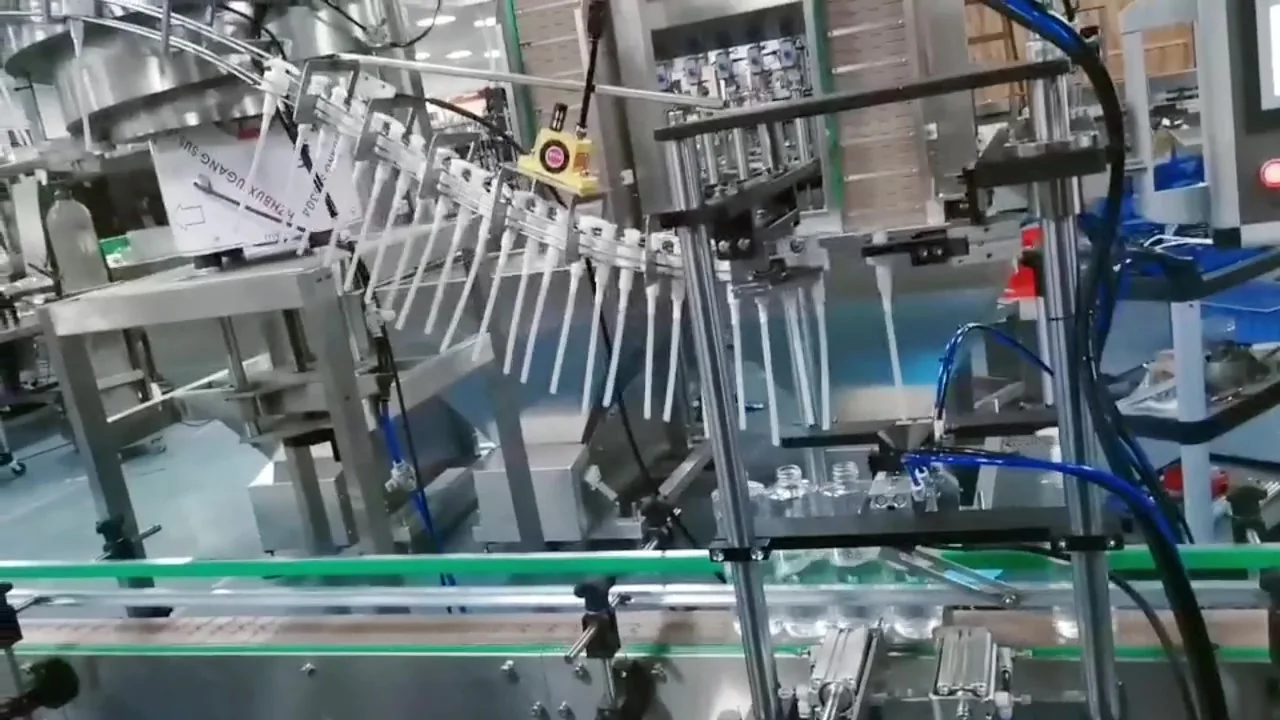

Automatic pump-head sorting, feeding and placement for lotion, shampoo and personal-care bottles. Tightening uses separate downstream equipment.
Automatic trigger sprayer capping machine for cleaning and chemical bottles, with accurate cap positioning and stable tightening force.

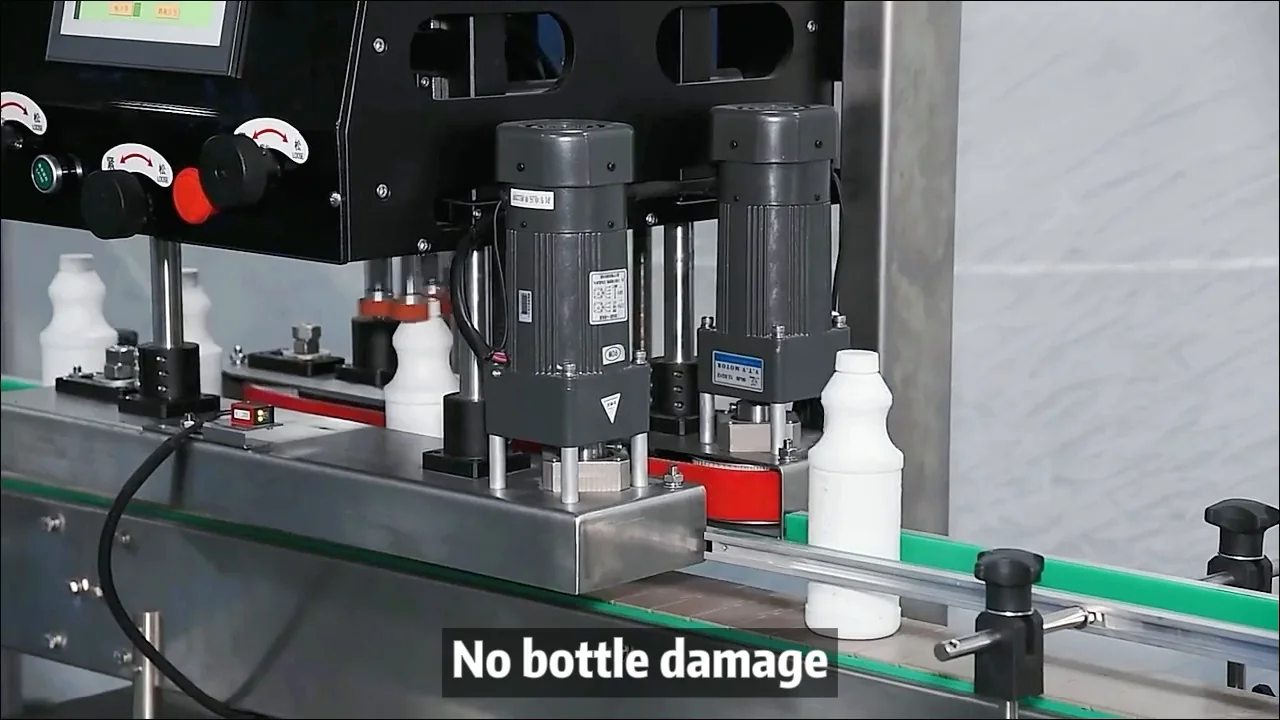

Automatic four-wheel servo capping machine for screw caps and pump caps, suitable for stable side tightening and fast changeover on inline production.

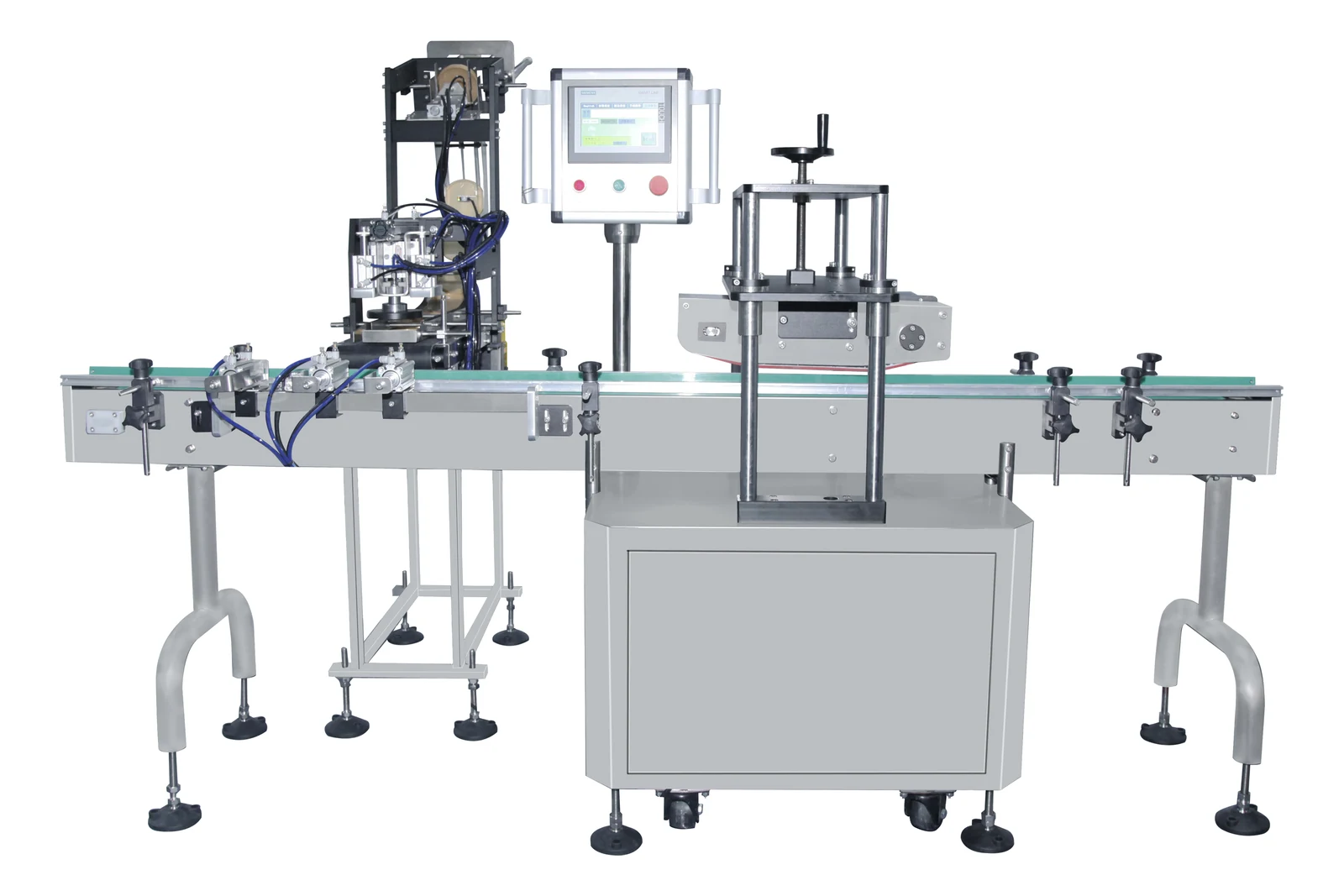

Automatic chain-plate press capping machine for press-fit cap applications, designed for stable pressing action and efficient inline bottle handling.

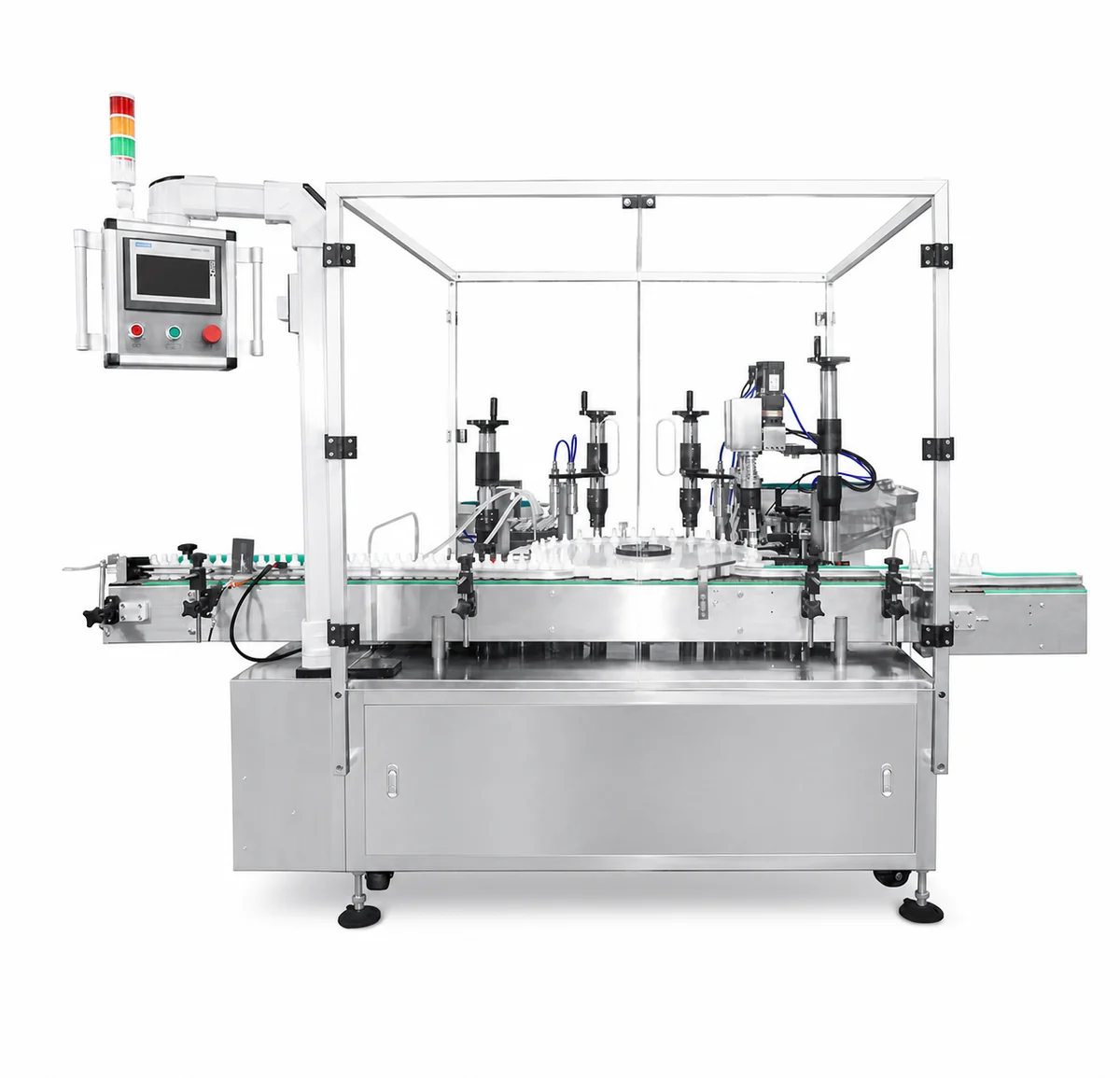

One compact platform for filling, plug insertion and capping of essential oil, e-liquid, eye-drop and other small bottles.
Capping equipment should first be selected from confirmed closure and bottle details. Cap diameter, cap height, bottle mouth, thread structure and torque requirement directly affect the capping solution.
Cap type decides whether the system needs cap feeding, cap placing, chuck capping, four-wheel capping or special tooling.
Bottle stability affects conveyor holding, side belts, positioning and tracking capping structure.
Torque and gripping method should be controlled according to cap material, cap thread and product requirements.
Head quantity and feeding system are selected according to your target capacity and line speed.

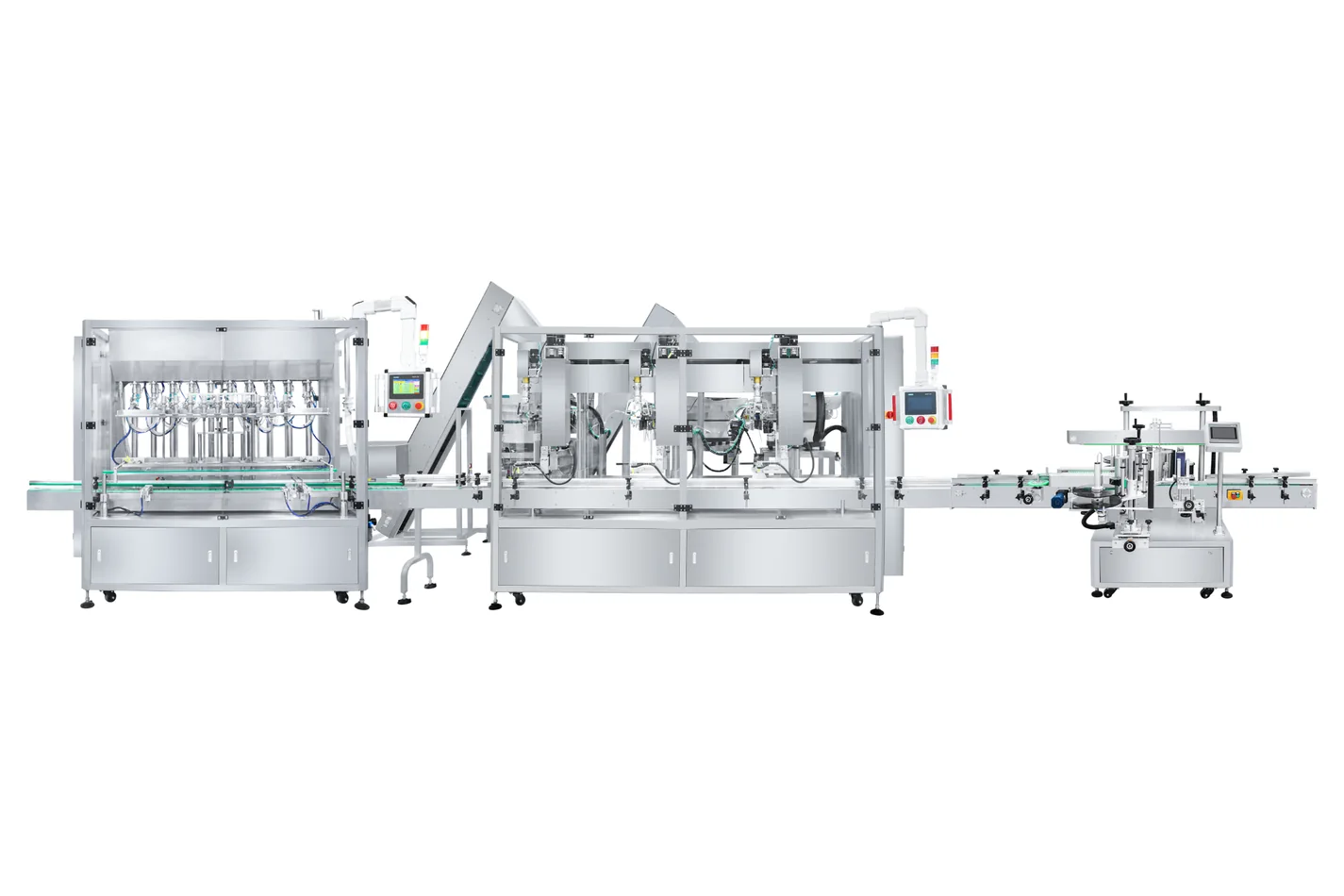

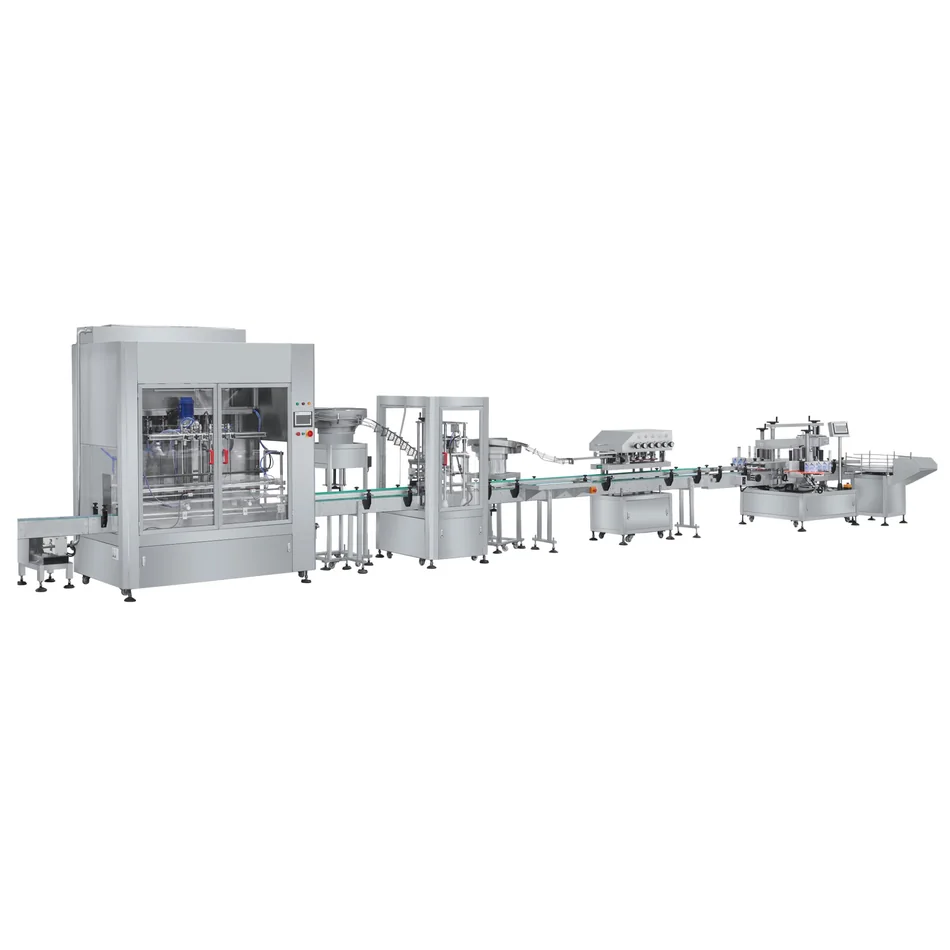

Capping machines can be supplied as standalone equipment or connected with filling, labeling and conveyor systems.
Share the closure type and size, bottle shape and volume, target speed and clear photos or drawings. We will recommend a suitable capping machine configuration.
It depends on the cap structure. Standard screw caps and pump heads usually require different feeding, placing and tightening solutions.
Cap type, cap diameter, cap height, bottle shape, bottle mouth, thread structure, torque requirement and target speed should be confirmed.
Yes. Vibratory bowl feeders, cap elevators or customized cap sorting systems can be configured based on cap type.
