Linear Capping

Automatic Linear Capping Machine For Continuous Screw Cap Tightening

Inline capping solution for standard screw caps, stable bottle flow and easy integration with automatic production lines.

Get A Quote Send Bottle & Cap Details View Configurations Download Datasheet

Machine Overview

What Is This Machine Used For?

Linear Capping

Continuous inline capping for standard production lines

Automatic linear capping machine tightens caps while bottles pass through a linear conveyor. It is suitable for standard screw cap products that require stable inline output.

Linear StructureScrew CapsStable OutputEasy Integration

Continuous Screw Cap Compatibility

Standard Screw Cap And Bottle Examples

These examples show stable bottle formats and conventional round screw caps suited to continuous inline tightening.

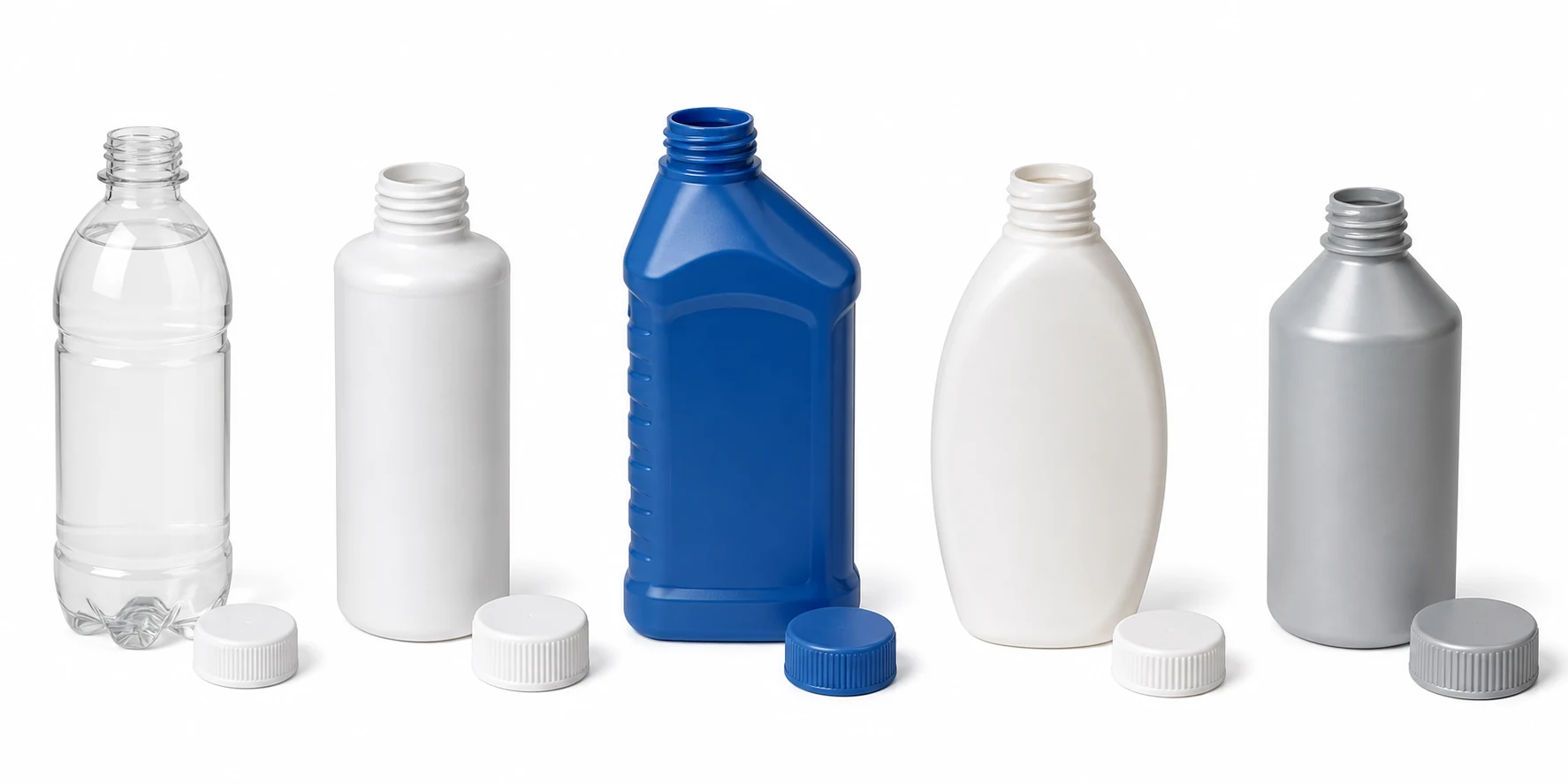

Round, cylindrical, rectangular, flat and chemical bottles with separate standard screw caps for automatic linear capping — Actual cap and bottle samples determine rail height, capping-wheel pressure, bottle-side belt settings and sustainable line speed.

Round BottleRibbed screw cap

Daily Chemical BottleFlat round screw cap

Rectangular Cleaner BottleStandard threaded closure

Personal Care BottleLow-profile screw cap

Chemical BottleTamper-style screw closure

Cap Compatibility

Suitable And Not Recommended Caps

Suitable Caps

Standard screw caps
Round caps
Daily chemical caps
Food and beverage caps after testing
Chemical bottle caps

Not Recommended For

Pump heads requiring placing mechanism
Trigger sprayers requiring special orientation
Press-fit caps
Very irregular caps
High-output lines requiring tracking capping

Machine Configurations

Linear Capping Machine Configurations

Automatic Linear Capping Machine

Six-wheel side capping

Cap Diameter22-110mm

Bottle Height10-60mm

Speed60 Bottles/Min

Heads6

Capping Features

Cap TypeStandard flat caps

MethodSix-wheel side capping

Torque ControlPLC setting

Cap PlacingLinear capping

Cap SortingVibratory bowl / cap elevator

Auto Cap FeedingYes

Bottle & Application

Bottle TypeRound / flat bottles

Suitable ClosureStandard flat caps, pump caps

IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine Specification

AutomationFully automatic

Machine304 stainless steel

Voltage380V

Power1.2 kW

Air Pressure0.6-0.8 MPa

Size850 x 63 x 1600mm

CustomizationYes

Configuration Logic

What Should Be Confirmed Before Selection?

Same Core Structure

Inline conveyor structure
Side bottle holding
Capping wheel tightening
PLC + HMI control
Automatic line connection

Need To Confirm

Cap diameter and cap height
Bottle height and bottle shape
Required speed
Torque range
Cap feeding method

Bottle And Line Matching

Recommended Bottle Types And Line Connection

Recommended Bottle Types

Round bottles
Flat bottles with side holding
Daily chemical bottles
Beverage bottles after testing
Chemical bottles
Stable plastic bottles

Bottle / Cap Matching Notes

Bottle Or Cap Type	Recommended Structure
Round bottles	Side belts and bottle positioning
Flat bottles	Bottle holding and anti-rotation guides
Pump heads	Pump head sorting, feeding and placing; use a separate tightening station when required
Trigger sprayers	Sprayer orientation and special grippers
Press caps	Pressing head and bottle support

Working Process

How The Linear Capping Machine Works

Step 01Bottle feeding

Step 02Cap sorting

Step 03Cap delivery

Step 04Bottle side holding

Step 05Linear cap tightening

Step 06Torque control

Step 07Bottle output

Step 08Labeling connection

The capping machine can work as a standalone unit, or connect with filling, labeling and conveyor systems to build an automatic production line.

Capping Method Value

Why Choose Linear Capping?

Main Advantages

Stable inline production
Suitable for standard screw caps
Easy to connect with filling machines
Simple adjustment for common caps

Production Benefits

Good for continuous production lines
Works with cap elevator or vibratory bowl
Can match labeling machines downstream
Suitable for many standard bottle types

Method Comparison

Comparison With Other Capping Methods

Capping Method	Best For	Selection Note
Swing Arm Capping	Round screw caps, medium-speed lines	Flexible solution for standard caps
Linear Capping	Continuous screw cap tightening	Good for stable inline production
Tracking Capping	Higher speed lines	Reduces bottle stop time
Pump Head Feeding & Placing	Lotion pump and shampoo pump caps	Sorts and places pump heads before a separate tightening station
Trigger Sprayer Capping	Sprayer caps for cleaning bottles	Designed for long trigger heads
Four-wheel Capping	Screw caps and some pump caps	Stable side tightening and fast changeover
Press Capping	Press-fit caps	Suitable for pressing instead of thread tightening

Real Machine Video

Real Machine Videos

Machine Test Video

Automatic Linear Capping Machine Running Test Video

Watch a real Automatic Linear Capping Machine test with cap feeding, placing and tightening process.

After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your Automatic Linear Capping Machine For Continuous Screw Cap Tightening. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

Send Project Details View Information Checklist

Recommended configurationMachine type, head or station quantity and required options.
Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
Written quotationConfirmed scope, available options, exclusions and commercial terms.
Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.

Engineering Definitions

How To Read The Published Automatic Linear Capping Machine For Continuous Screw Cap Tightening Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Bottle and cap range

Published dimensions are selection references. Neck finish, cap geometry, bottle support and physical samples control final approval.

Heads or stations

The listed quantity describes the configured capping positions; the cap-feeding method remains part of the system design.

Speed basis

A sustained bottles-per-minute target requires the real cap, bottle, feeder and upstream spacing conditions.

Closure result

Placement, tightening, pressing or torque checks use an agreed method and supplied package samples during FAT.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

Approved general arrangement or layout
English operation manual
Electrical diagram
Pneumatic diagram where applicable
PLC program backup
Agreed FAT criteria and record
Operation training
Recommended spare-parts list

1 yearWarranty

Within 2 hoursOnline response

Remote + onsiteCommissioning options

Within 7 daysCommon spares dispatch

Download Engineering Datasheet Review Factory Acceptance Review engineering evidence

FAQ

Common Questions Before Buying

What is linear capping best for?

It is best for standard screw caps in continuous inline production.

Can it handle flat bottles?

Yes, if bottle holding and side guides are configured correctly.

Is it suitable for pump caps?

Usually pump caps need a dedicated pump head feeding and placing machine.

Can it connect with filling and labeling?

Yes. It is commonly used in automatic filling capping labeling lines.

What information is needed for the initial review?

Send bottle and closure photos, dimensions, target speed and line details for the initial review. Physical items are requested later only when tooling or FAT requires them.

Back To Capping Machines Send Inquiry

Buyer Selection Guide

Automatic Linear Capping Machine Selection Answers For Buyers

Best Used For

Flat caps, screw caps, round bottles, daily chemical bottles and general liquid packaging lines.

When To Choose It

Choose it when the cap is a standard screw cap and the buyer needs a straightforward inline capping solution.

Not Recommended For

Not recommended for caps requiring special orientation, pump tube insertion or non-standard cap handling without customization.

Before Quotation

Cap size, bottle size, cap thread, bottle material, target speed, cap feeding method and line connection requirement.
