Automatic Tracking Capping Machine For Higher Speed Bottle Lines

Continuous motion capping solution for higher-speed production lines that need reduced bottle stop time and stable torque control.

Get A QuoteSend Bottle & Cap DetailsView ConfigurationsDownload Datasheet
Home/Capping Machines/Automatic Tracking Capping Machine
Machine Overview

What Is This Machine Used For?

Automatic Tracking Capping Machine
Tracking Capping

Continuous motion capping for higher output lines

Tracking capping machine follows bottle movement during cap tightening. It helps reduce bottle stop time and improve line efficiency in automatic production.

Continuous MotionHigher SpeedNo Bottle StopLine Integration
Cap Compatibility

Standard Flat Cap And Bottle Examples

The tracking pick-and-place structure is designed around stable round or flat bottles with standard flat screw caps.

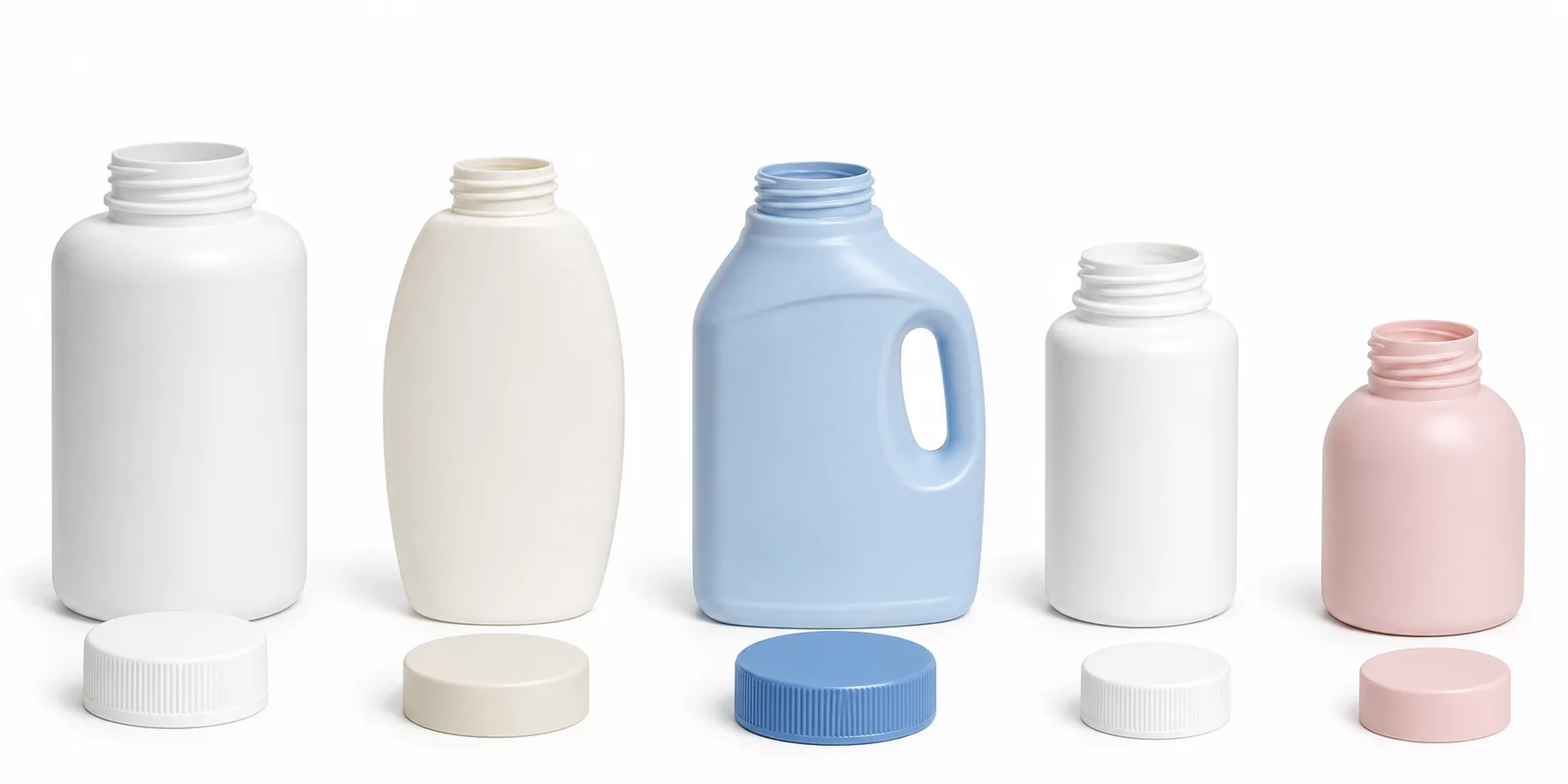

Round and flat bottle examples with separate standard round flat screw caps for tracking pick and place capping
Actual cap diameter, thread finish, bottle stability and target line speed determine the final feeding track, pickup tooling and capping-head configuration.
Round Chemical BottleStandard ribbed screw cap
Flat Personal Care BottleRound flat closure
Detergent BottleWider threaded cap
Healthcare BottleStable cylindrical container
Cosmetic BottleCompact flat screw cap
Cap Compatibility

Suitable And Not Recommended Caps

Suitable Caps

  • Standard screw caps
  • Round flat caps
  • Daily chemical caps
  • Cosmetic caps
  • Chemical caps after testing

Not Recommended For

  • Unstable bottles without positioning support
  • Very low-speed small batch production
  • Caps requiring complex manual orientation
  • Press-fit caps
  • Lines with unstable upstream feeding
Machine Configurations

Tracking Capping Machine Configurations

2-Head Tracking Capping Machine

2-Head Tracking Capping Machine

Tracking pick-and-place capping
Cap Diameter22-110mm
Bottle Height10-60mm
Speed60 Bottles/Min
Heads2

Capping Features

Cap TypeStandard flat caps
MethodTracking pick-and-place capping
Torque ControlPLC setting
Cap PlacingCap pickup and placing
Cap SortingVibratory bowl / cap elevator
Auto Cap FeedingYes

Bottle & Application

Bottle TypeRound / flat bottles
Suitable ClosureStandard flat caps
IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine Specification

AutomationFully automatic
Machine304 stainless steel
Voltage380V
Power4 kW
Air Pressure0.6-0.8 MPa
Size2000 x 1150 x 2200mm
CustomizationYes
3-Head Tracking Capping Machine

3-Head Tracking Capping Machine

Tracking pick-and-place capping
Cap Diameter22-110mm
Bottle Height10-60mm
Speed70 Bottles/Min
Heads3

Capping Features

Cap TypeStandard flat caps
MethodTracking pick-and-place capping
Torque ControlPLC setting
Cap PlacingCap pickup and placing
Cap SortingVibratory bowl / cap elevator
Auto Cap FeedingYes

Bottle & Application

Bottle TypeRound / flat bottles
Suitable ClosureStandard flat caps
IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine Specification

AutomationFully automatic
Machine304 stainless steel
Voltage380V
Power5.6 kW
Air Pressure0.6-0.8 MPa
Size3000 x 1150 x 2200mm
CustomizationYes

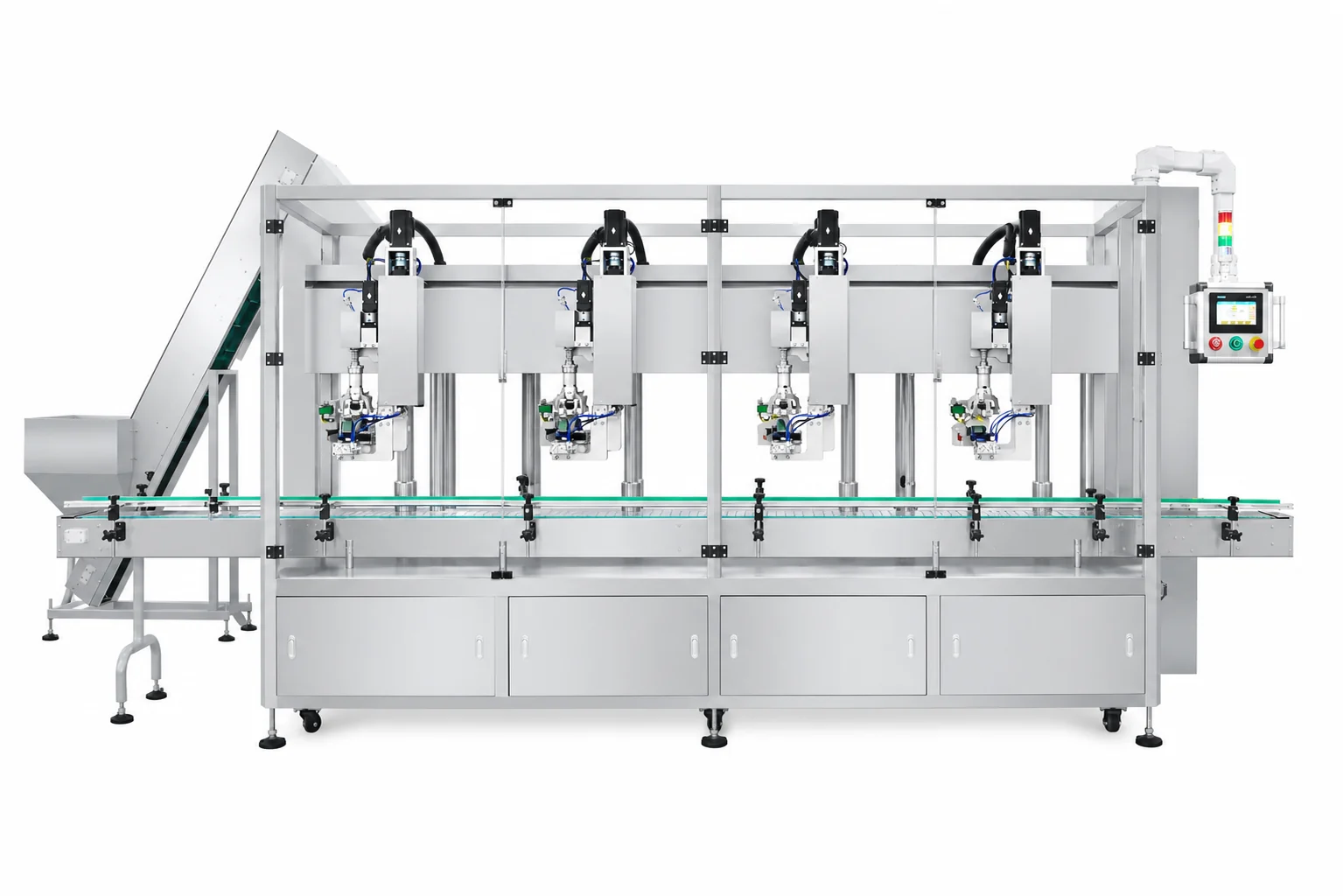

4-Head Tracking Capping Machine

4-Head Tracking Capping Machine

Tracking pick-and-place capping
Cap Diameter22-110mm
Bottle Height10-60mm
Speed80 Bottles/Min
Heads4

Capping Features

Cap TypeStandard flat caps
MethodTracking pick-and-place capping
Torque ControlPLC setting
Cap PlacingCap pickup and placing
Cap SortingVibratory bowl / cap elevator
Auto Cap FeedingYes

Bottle & Application

Bottle TypeRound / flat bottles
Suitable ClosureStandard flat caps
IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine Specification

AutomationFully automatic
Machine304 stainless steel
Voltage380V
Power7.2 kW
Air Pressure0.6-0.8 MPa
Size4000 x 1150 x 2200mm
CustomizationYes
Configuration Logic

What Should Be Confirmed Before Selection?

Same Core Structure

  • Tracking motion system
  • Cap pickup and placement
  • PLC torque setting
  • Bottle tracking control
  • Line conveyor integration

Need To Confirm

  • Target line speed
  • Bottle stability during movement
  • Cap diameter and thread condition
  • Cap feeding speed
  • Line layout and conveyor length
Bottle And Line Matching

Recommended Bottle Types And Line Connection

Recommended Bottle Types

  • Stable round bottles
  • Stable flat bottles
  • Daily chemical bottles
  • Cosmetic bottles
  • Chemical bottles
  • High-output line bottles

Bottle / Cap Matching Notes

Bottle Or Cap TypeRecommended Structure
Round bottlesSide belts and bottle positioning
Flat bottlesBottle holding and anti-rotation guides
Pump headsPump head sorting, feeding and placing; use a separate tightening station when required
Trigger sprayersSprayer orientation and special grippers
Press capsPressing head and bottle support
Working Process

How The Tracking Capping Machine Works

Step 01Bottle feeding
Step 02Cap sorting
Step 03Bottle tracking
Step 04Cap placement
Step 05Tracking tightening
Step 06Torque control
Step 07Bottle output
Step 08Labeling connection

The capping machine can work as a standalone unit, or connect with filling, labeling and conveyor systems to build an automatic production line.

Capping Method Value

Why Choose Tracking Capping?

Main Advantages

  • Reduces bottle stop time
  • Suitable for higher speed lines
  • Stable torque control
  • Good for automatic production

Production Benefits

  • Improves line continuity
  • Can match faster filling machines
  • Useful for daily chemical production
  • Customizable by speed and cap sample
Method Comparison

Comparison With Other Capping Methods

Capping MethodBest ForSelection Note
Swing Arm CappingRound screw caps, medium-speed linesFlexible solution for standard caps
Linear CappingContinuous screw cap tighteningGood for stable inline production
Tracking CappingHigher speed linesReduces bottle stop time
Pump Head Feeding & PlacingLotion pump and shampoo pump capsSorts and places pump heads before a separate tightening station
Trigger Sprayer CappingSprayer caps for cleaning bottlesDesigned for long trigger heads
Four-wheel CappingScrew caps and some pump capsStable side tightening and fast changeover
Press CappingPress-fit capsSuitable for pressing instead of thread tightening
Real Machine Video

Real Machine Videos

2-Head Machine Test

2-Head Automatic Tracking Capping Machine Video

Watch the real 2-head tracking capping machine running with round screw caps.

After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your Automatic Tracking Capping Machine For Higher Speed Bottle Lines. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

Send Project DetailsView Information Checklist
  1. Recommended configurationMachine type, head or station quantity and required options.
  2. Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
  3. Written quotationConfirmed scope, available options, exclusions and commercial terms.
  4. Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.
Engineering Definitions

How To Read The Published Automatic Tracking Capping Machine For Higher Speed Bottle Lines Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Bottle and cap range

Published dimensions are selection references. Neck finish, cap geometry, bottle support and physical samples control final approval.

Heads or stations

The listed quantity describes the configured capping positions; the cap-feeding method remains part of the system design.

Speed basis

A sustained bottles-per-minute target requires the real cap, bottle, feeder and upstream spacing conditions.

Closure result

Placement, tightening, pressing or torque checks use an agreed method and supplied package samples during FAT.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

  • Approved general arrangement or layout
  • English operation manual
  • Electrical diagram
  • Pneumatic diagram where applicable
  • PLC program backup
  • Agreed FAT criteria and record
  • Operation training
  • Recommended spare-parts list
1 yearWarranty
Within 2 hoursOnline response
Remote + onsiteCommissioning options
Within 7 daysCommon spares dispatch
Download Engineering DatasheetReview Factory AcceptanceReview engineering evidence
FAQ

Common Questions Before Buying

Why use tracking capping?

It reduces bottle stop time and is suitable for higher speed production lines.

Does it need stable bottles?

Yes. Bottle stability and positioning are important.

Can it handle screw caps?

Yes. Standard screw caps are common applications.

Can it connect with filling and labeling?

Yes. It is designed for complete line integration.

How is speed confirmed?

Speed depends on cap type, bottle stability, capping heads and feeding system.

Back To Capping MachinesSend Inquiry
Buyer Selection Guide

Automatic Tracking Capping Machine Selection Answers For Buyers

Best Used For

Screw caps and customized cap applications on automatic filling capping labeling lines.

When To Choose It

Choose it when the line needs higher speed, stable capping torque and smooth connection after filling.

Not Recommended For

Not recommended when cap shape is unstable, bottle holding is weak, or cap feeding direction cannot be confirmed by samples.

Before Quotation

Cap diameter, cap height, bottle height, bottle shape, thread type, target speed and whether automatic cap feeding is required.
