Swing Arm Capping

Automatic Swing Arm Capping Machine For Screw Caps And Round Caps

Automatic swing arm capping solution for standard screw caps where flexible operation and stable tightening are required.

Get A Quote Send Bottle & Cap Details View Configurations Download Datasheet

Machine Overview

What Is This Machine Used For?

Swing Arm Capping

Flexible screw cap tightening for medium-speed production

Swing arm capping machine uses a swing arm structure to pick or place caps and tighten them on bottles. It is suitable for common screw caps and standard round cap applications.

Swing Arm StructureScrew CapsStable TorqueLine Ready

Round Cap Compatibility

Round Screw Cap And Bottle Examples

These examples show stable round and flat screw caps that can be picked, placed and tightened by a swing-arm capping station.

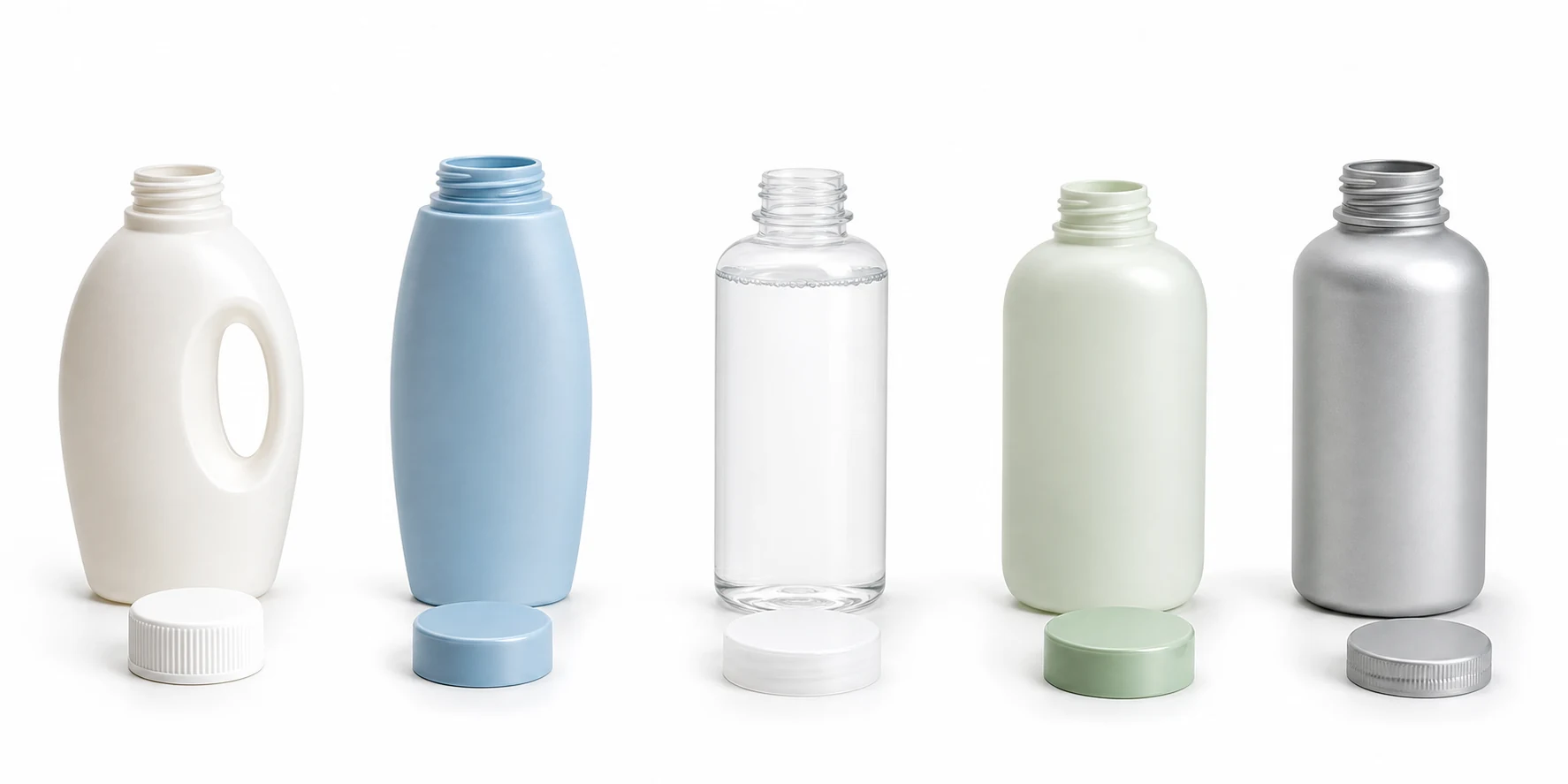

Daily chemical, shampoo, cosmetic, personal care and chemical bottles with separate round screw caps for swing arm capping — Actual cap diameter, height, torque requirement and bottle stability determine the pickup tooling, chuck and positioning guides.

Daily Chemical BottleRibbed screw cap

Shampoo BottleSmooth round cap

Cosmetic Toner BottleLow-profile screw cap

Personal Care BottleStandard flat cap

Chemical BottleMetal-look screw closure

Cap Compatibility

Suitable And Not Recommended Caps

Suitable Caps

Standard screw caps
Round flat caps
Daily chemical bottle caps
Cosmetic bottle caps
Chemical bottle caps after testing

Not Recommended For

Very unstable special-shaped caps
Trigger sprayers without special tooling
Pump heads requiring cap placing system
Press-fit caps
High-speed lines requiring tracking capping

Machine Configurations

Swing Arm Capping Machine Configurations

Automatic Swing Arm Capping Machine

Swing arm capping

Cap Diameter22-110mm

Bottle Height10-60mm

Speed25-40 Bottles/Min

Heads2

Capping Features

Cap TypeStandard flat caps

MethodSwing arm capping

Torque ControlPLC setting

Cap PlacingCap pickup and placing

Cap SortingVibratory bowl / cap elevator

Auto Cap FeedingYes

Bottle & Application

Bottle TypeRound bottles

Suitable ClosureStandard flat caps

IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine Specification

AutomationFully automatic

Machine304 stainless steel

Voltage380V

Power2 kW

Air Pressure0.6-0.8 MPa

Size1000 x 1200 x 2100mm

CustomizationYes

Configuration Logic

What Should Be Confirmed Before Selection?

Same Core Structure

Swing arm capping action
PLC torque setting
Automatic cap feeding can be configured
Bottle positioning structure
Line integration capability

Need To Confirm

Cap diameter and cap height
Bottle height and bottle stability
Required capping speed
Cap feeding method
Torque and cap damage requirement

Bottle And Line Matching

Recommended Bottle Types And Line Connection

Recommended Bottle Types

Round bottles
Daily chemical bottles
Cosmetic bottles
Chemical bottles
Stable plastic bottles
Glass bottles after testing

Bottle / Cap Matching Notes

Bottle Or Cap Type	Recommended Structure
Round bottles	Side belts and bottle positioning
Flat bottles	Bottle holding and anti-rotation guides
Pump heads	Pump head sorting, feeding and placing; use a separate tightening station when required
Trigger sprayers	Sprayer orientation and special grippers
Press caps	Pressing head and bottle support

Working Process

How The Swing Arm Capping Machine Works

Step 01Bottle feeding

Step 02Cap sorting

Step 03Cap pickup

Step 04Swing arm placement

Step 05Cap tightening

Step 06Torque control

Step 07Bottle output

Step 08Line connection

The capping machine can work as a standalone unit, or connect with filling, labeling and conveyor systems to build an automatic production line.

Capping Method Value

Why Choose Swing Arm Capping?

Main Advantages

Flexible for standard screw caps
Stable tightening action
Suitable for medium-speed production
Can connect with filling and labeling

Production Benefits

Good for customized bottle lines
Cap feeding can be configured by sample
Easy to adjust for bottle size
Useful for daily chemical and cosmetic products

Method Comparison

Comparison With Other Capping Methods

Capping Method	Best For	Selection Note
Swing Arm Capping	Round screw caps, medium-speed lines	Flexible solution for standard caps
Linear Capping	Continuous screw cap tightening	Good for stable inline production
Tracking Capping	Higher speed lines	Reduces bottle stop time
Pump Head Feeding & Placing	Lotion pump and shampoo pump caps	Sorts and places pump heads before a separate tightening station
Trigger Sprayer Capping	Sprayer caps for cleaning bottles	Designed for long trigger heads
Four-wheel Capping	Screw caps and some pump caps	Stable side tightening and fast changeover
Press Capping	Press-fit caps	Suitable for pressing instead of thread tightening

Real Machine Video

Real Machine Videos

Real Machine Video

Automatic Swing Arm Capping Machine Video

Click to view the uploaded real machine video for this product.

After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your Automatic Swing Arm Capping Machine For Screw Caps And Round Caps. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

Send Project Details View Information Checklist

Recommended configurationMachine type, head or station quantity and required options.
Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
Written quotationConfirmed scope, available options, exclusions and commercial terms.
Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.

Engineering Definitions

How To Read The Published Automatic Swing Arm Capping Machine For Screw Caps And Round Caps Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Bottle and cap range

Published dimensions are selection references. Neck finish, cap geometry, bottle support and physical samples control final approval.

Heads or stations

The listed quantity describes the configured capping positions; the cap-feeding method remains part of the system design.

Speed basis

A sustained bottles-per-minute target requires the real cap, bottle, feeder and upstream spacing conditions.

Closure result

Placement, tightening, pressing or torque checks use an agreed method and supplied package samples during FAT.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

Approved general arrangement or layout
English operation manual
Electrical diagram
Pneumatic diagram where applicable
PLC program backup
Agreed FAT criteria and record
Operation training
Recommended spare-parts list

1 yearWarranty

Within 2 hoursOnline response

Remote + onsiteCommissioning options

Within 7 daysCommon spares dispatch

Download Engineering Datasheet Review Factory Acceptance Review engineering evidence

FAQ

Common Questions Before Buying

What caps are suitable for swing arm capping?

Standard screw caps and round flat caps are common applications.

Can it handle pump heads?

Pump heads usually need a pump head feeding and placing machine with special placing structure.

Can torque be controlled?

Yes. Torque control can be set according to cap and bottle samples.

Can it connect with a filling machine?

Yes. It can connect with filling, labeling and conveyor systems.

Do you need cap samples?

Yes. Cap samples are important for selecting grippers and feeding structure.

Back To Capping Machines Send Inquiry

Buyer Selection Guide

Automatic Swing Arm Capping Machine Selection Answers For Buyers

Best Used For

Screw caps on round bottles, jars and daily chemical or cosmetic containers.

When To Choose It

Choose it for medium-speed automatic lines where cap handling stability and torque control are important.

Not Recommended For

Not recommended for trigger sprayers, special pump heads or caps requiring complex orientation without customized tooling.

Before Quotation

Cap diameter, cap height, bottle height, bottle diameter, cap feeding method, target speed and required torque range.
