Automatic Trigger Sprayer Capping Machine For Cleaner And Chemical Spray Bottles

Automatic trigger sprayer cap handling and capping solution for cleaning liquid, disinfectant and chemical spray bottle lines.

Get A Quote Send Bottle & Cap Details View Configurations Download Datasheet

Machine Overview

What Is This Machine Used For?

Trigger Sprayer Capping

Special cap handling for trigger sprayer bottles

Trigger sprayer capping machine is designed for caps with long sprayer heads. It helps automatically place and tighten trigger sprayers for cleaner and chemical spray bottle production.

Trigger SprayersCleaner BottlesSpecial GripperLine Ready

Trigger Sprayer Compatibility

Trigger Sprayer And Bottle Examples

Compare bottle shape, threaded neck, sprayer collar and dip-tube length before selecting the feeding, gripping and tightening structure.

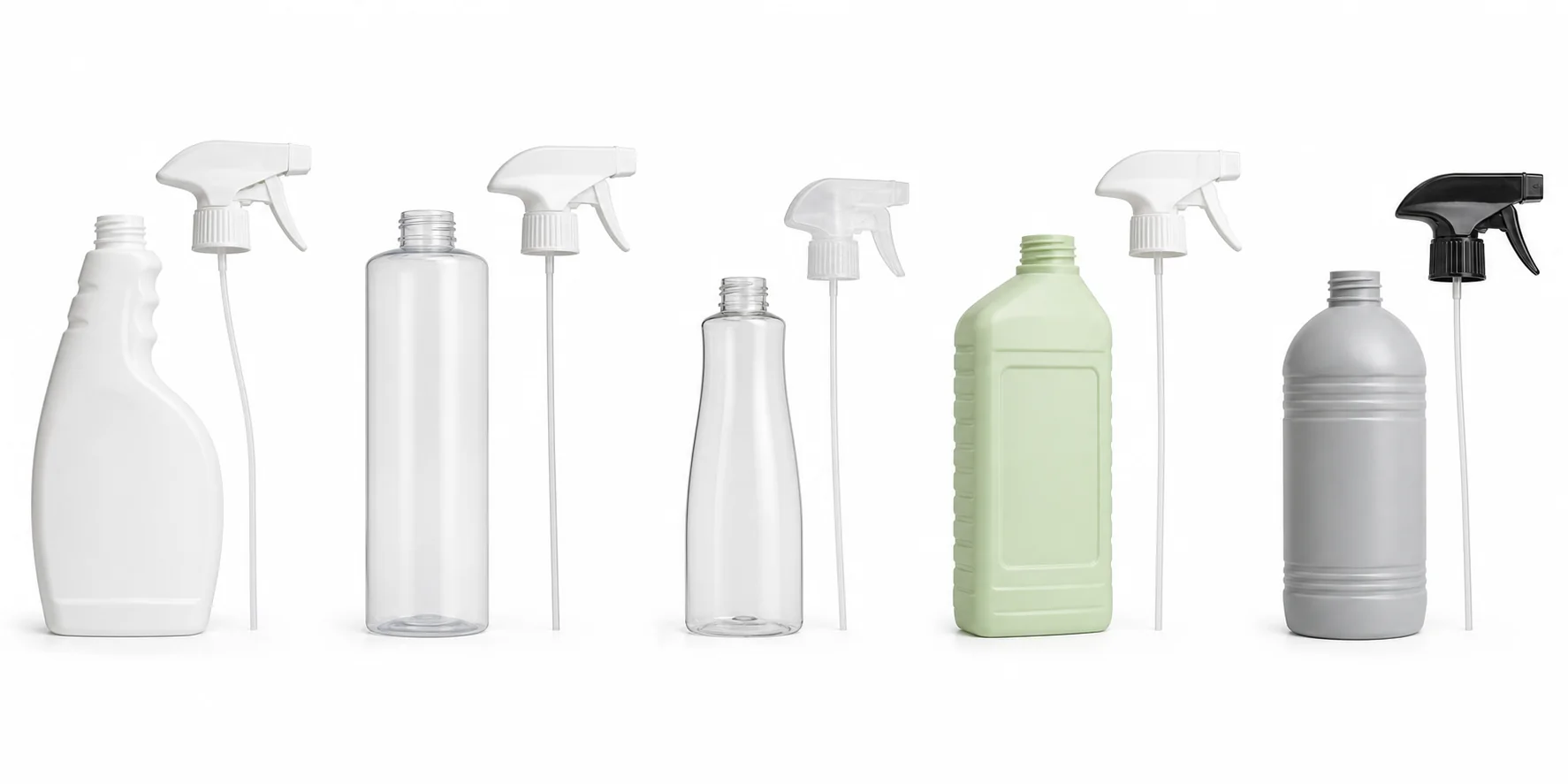

Cleaner, chemical, personal care and agrochemical spray bottles with separate trigger sprayer closures and dip tubes — Actual bottle and trigger-sprayer samples are required to confirm neck fit, dip-tube handling, gripper design and stable tightening.

Household Cleaner BottleStandard trigger sprayer

Cylindrical Spray BottleThreaded collar and dip tube

Personal Care Spray BottleCompact trigger closure

Agrochemical BottleLong dip-tube configuration

Industrial Cleaner BottleWide bottle and sprayer fit

Cap Compatibility

Suitable And Not Recommended Caps

Suitable Caps

Trigger sprayer caps
Cleaner spray heads
Disinfectant spray heads
Chemical spray bottle caps
Long-head sprayer caps

Not Recommended For

Standard screw caps where linear capping is enough
Pump heads requiring pump cap system
Press-fit caps
Caps with unstable orientation without testing
Very fragile caps without protection design

Machine Configurations

Trigger Sprayer Capping Machine Configurations

Automatic Trigger Sprayer Capping Machine

Pick-and-place capping

Cap Diameter22-50mm

Bottle Height10-60mm

Speed20-23 Bottles/Min

Heads1

Capping Features

Cap TypeTrigger sprayer caps

MethodPick-and-place capping

Torque ControlPLC setting

Cap PlacingCap pickup and placing

Cap SortingVibratory bowl / cap elevator

Auto Cap FeedingYes

Bottle & Application

Bottle TypeRound / flat bottles

Suitable ClosureTrigger sprayer caps

IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine Specification

AutomationFully automatic

Machine304 stainless steel

Voltage380V

Power2 kW

Air Pressure0.6-0.8 MPa

Size1200 x 900 x 2100mm

CustomizationYes

Configuration Logic

What Should Be Confirmed Before Selection?

Same Core Structure

Trigger sprayer handling
Special cap gripper
Bottle positioning
Torque control
Line connection capability

Need To Confirm

Sprayer head shape
Cap orientation requirement
Tube length
Bottle neck size
Required speed

Bottle And Line Matching

Recommended Bottle Types And Line Connection

Recommended Bottle Types

Cleaner spray bottles
Disinfectant bottles
Chemical spray bottles
Household cleaning bottles
Daily chemical spray bottles
Stable plastic bottles

Bottle / Cap Matching Notes

Bottle Or Cap Type	Recommended Structure
Round bottles	Side belts and bottle positioning
Flat bottles	Bottle holding and anti-rotation guides
Pump heads	Pump head sorting, feeding and placing; use a separate tightening station when required
Trigger sprayers	Sprayer orientation and special grippers
Press caps	Pressing head and bottle support

Working Process

How The Trigger Sprayer Capping Machine Works

Step 01Bottle feeding

Step 02Sprayer sorting

Step 03Sprayer pickup

Step 04Cap placing

Step 05Sprayer tightening

Step 06Torque control

Step 07Bottle output

Step 08Labeling connection

The capping machine can work as a standalone unit, or connect with filling, labeling and conveyor systems to build an automatic production line.

Capping Method Value

Why Choose Trigger Sprayer Capping?

Main Advantages

Designed for long sprayer heads
Improves spray bottle automation
Reduces manual cap handling
Can be customized by sprayer sample

Production Benefits

Good for cleaning product lines
Can connect with filling and labeling systems
Supports special gripper design
Useful for chemical spray packaging

Method Comparison

Comparison With Other Capping Methods

Capping Method	Best For	Selection Note
Swing Arm Capping	Round screw caps, medium-speed lines	Flexible solution for standard caps
Linear Capping	Continuous screw cap tightening	Good for stable inline production
Tracking Capping	Higher speed lines	Reduces bottle stop time
Pump Head Feeding & Placing	Lotion pump and shampoo pump caps	Sorts and places pump heads before a separate tightening station
Trigger Sprayer Capping	Sprayer caps for cleaning bottles	Designed for long trigger heads
Four-wheel Capping	Screw caps and some pump caps	Stable side tightening and fast changeover
Press Capping	Press-fit caps	Suitable for pressing instead of thread tightening

Real Machine Video

Real Machine Videos

Real Machine Video

Automatic Trigger Sprayer Capping Machine Video

Click to view the uploaded real machine video for this product.

After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your Automatic Trigger Sprayer Capping Machine For Cleaner And Chemical Spray Bottles. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

Send Project Details View Information Checklist

Recommended configurationMachine type, head or station quantity and required options.
Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
Written quotationConfirmed scope, available options, exclusions and commercial terms.
Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.

Engineering Definitions

How To Read The Published Automatic Trigger Sprayer Capping Machine For Cleaner And Chemical Spray Bottles Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Bottle and cap range

Published dimensions are selection references. Neck finish, cap geometry, bottle support and physical samples control final approval.

Heads or stations

The listed quantity describes the configured capping positions; the cap-feeding method remains part of the system design.

Speed basis

A sustained bottles-per-minute target requires the real cap, bottle, feeder and upstream spacing conditions.

Closure result

Placement, tightening, pressing or torque checks use an agreed method and supplied package samples during FAT.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

Approved general arrangement or layout
English operation manual
Electrical diagram
Pneumatic diagram where applicable
PLC program backup
Agreed FAT criteria and record
Operation training
Recommended spare-parts list

1 yearWarranty

Within 2 hoursOnline response

Remote + onsiteCommissioning options

Within 7 daysCommon spares dispatch

Download Engineering Datasheet Review Factory Acceptance Review engineering evidence

FAQ

Common Questions Before Buying

Why is trigger sprayer capping different?

Trigger sprayers have long heads and tubes, so they need special handling and positioning.

Can it handle different sprayer shapes?

It can be customized after checking real samples.

Can it connect with filling machines?

Yes. It is commonly used after liquid cleaner filling.

Do you need sprayer samples?

Yes. Sprayer head shape and tube length must be checked.

Can it prevent cap damage?

Tooling can be designed to reduce cap damage, depending on the cap material.

Back To Capping Machines Send Inquiry

Buyer Selection Guide

Automatic Trigger Sprayer Capping Machine Selection Answers For Buyers

Best Used For

Trigger sprayer bottles, spray cleaner bottles, disinfectant spray bottles and daily chemical spray packaging.

When To Choose It

Choose it when the cap has a trigger handle, long tube or orientation requirement that normal capping machines cannot handle reliably.

Not Recommended For

Not recommended for simple flat screw caps or lotion pump heads unless the capping structure is changed.

Before Quotation

Trigger sprayer dimensions, tube length, bottle height, bottle neck size, required cap orientation, target speed and feeding method.
