Precision Pump Filling

Gear Pump Filling Machine For Oil, Essential Oil, E-Liquid And Chemical Liquids

Precision gear-pump filling for compatible low- to medium-viscosity oils, essences, e-liquids, liquid fertilizer, detergent, shampoo and chemical liquids, configured for stable dosing and repeatable filling volume.

Get A Quote Send Bottle & Liquid Details View Configurations Download Datasheet

Machine Overview

What Is Gear Pump Filling Machine Used For?

Precision Pump Filling

Accurate gear-pump dosing across compatible liquid products

Gear pump filling uses a gear pump system to control liquid transfer and filling volume. The pump, seals, hoses and nozzles are selected after reviewing the actual liquid viscosity, foaming behavior, chemical compatibility and cleaning requirements.

Precision DosingLow / Medium ViscosityLiquid Fertilizer / Detergent / ShampooLine Integration

Liquid And Package Compatibility

Representative Container And Closure Examples

Gear pump dosing can be configured for oils, essences, e-liquids, liquid fertilizer, detergent, shampoo and other compatible low- to medium-viscosity liquids in small or medium containers.

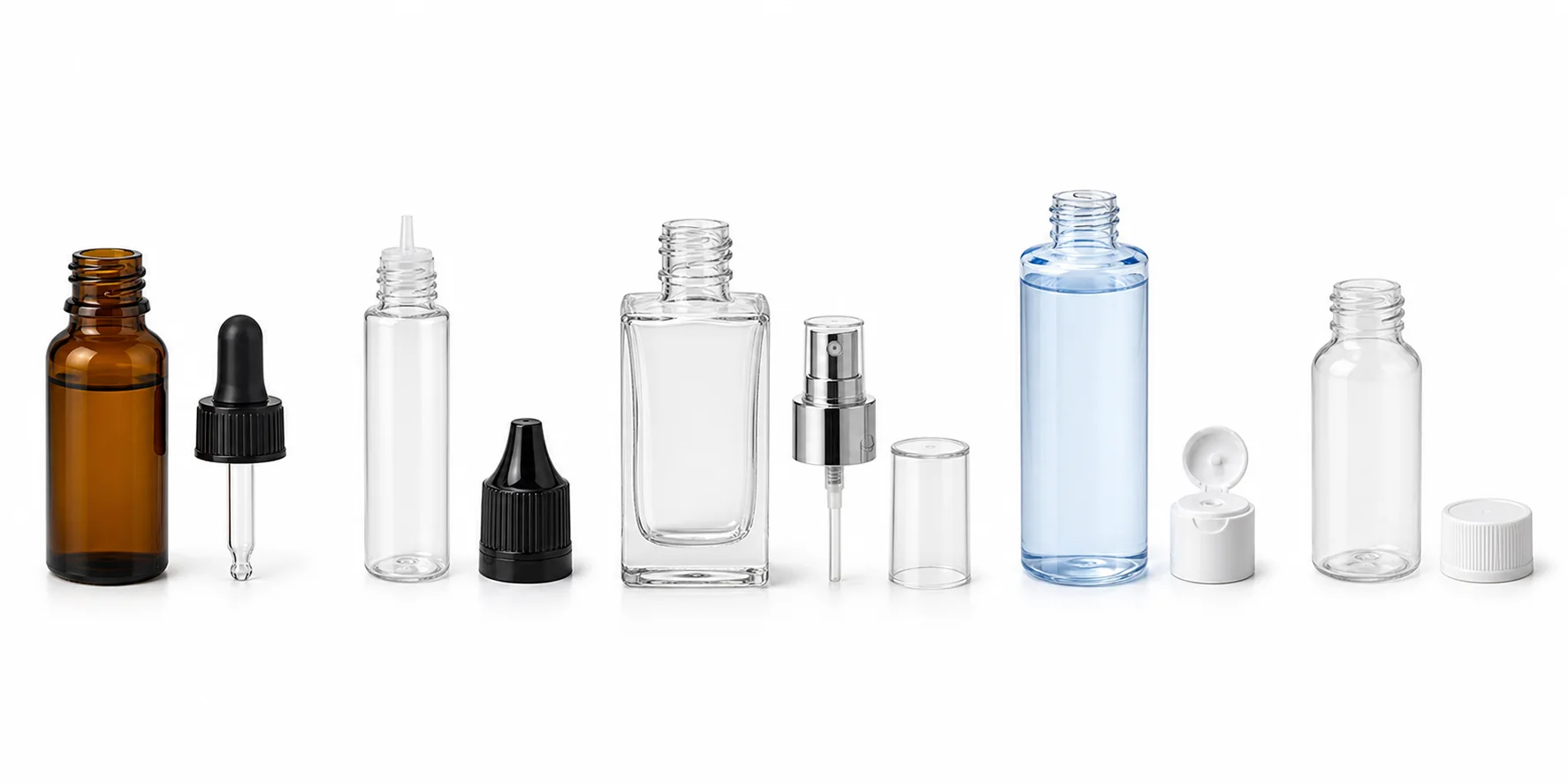

Essential oil, e-liquid, fragrance essence, cosmetic toner and chemical liquid bottles with separate closures for gear pump filling — Actual liquid viscosity, chemical compatibility, target dose and bottle opening determine the pump material, tubing and filling nozzle.

Essential Oil BottleDropper pipette

E-liquid BottleFine-tip nozzle cap

Fragrance And EssenceSpray pump and overcap

Cosmetic Toner BottleDisc-top or screw closure

Chemical Liquid BottleStandard screw cap

Liquid Compatibility

Suitable And Not Recommended Liquids

This general guide covers the low- to medium-viscosity configurations. The 8-head servo configuration below has its own published application and viscosity range; do not apply that range to every machine in this family.

Suitable Liquids

Edible oil
Essential oil
Essence
E-liquid
Liquid fertilizer
Detergent
Shampoo
Toner
Low-viscosity chemical liquid
Fragrance liquid
Liquid flavor

Not Recommended For

Very thick paste or cream without a project-matched pump and sample testing
Liquids with large particles
Highly foaming products without special nozzle design
Strong corrosive liquids without compatible pump material
Sterile pharmaceutical products requiring cleanroom filling

Machine Configurations

Gear Pump Filling Machine Configurations

Each configuration has its own filling range, suitable products and output conditions. In particular, the 8-head servo example lists 50–5000 mL and 1–30000 mPa·s; its 40–45 bottles/min reference is based on 50–500 mL medium-viscosity daily chemical or sauce products. It is not a speed guarantee across the full volume and viscosity ranges. Confirm the actual formula, bottle and connected equipment before selecting a configuration.

2-Head Gear Pump Filling Machine

Gear pump filling

Filling Range50-30000 mL

Filling Heads2

Speed15-20 Bottles/Min

Accuracy±1%

Filling Features

MethodGear pump filling

Anti-dripYes

Anti-foamYes

Quick CleanYes

Bottle & Application

Suitable LiquidCompatible low-to-medium viscosity liquids such as oils, essences, e-liquids, liquid fertilizer, detergent, shampoo and chemical liquids

Bottle TypeCream jars, personal care bottles, beverage bottles

Mouth Range15-100mm

Capacity50-30000 mL

Machine Specification

AutomationFully automatic

IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine304 stainless steel

Contact316 stainless steel, PTFE

Voltage380V

Power3 kW

Air Pressure0.6-0.8 MPa

Size1000 x 1500 x 2200mm

CustomizationYes

4-Head Gear Pump Filling Machine

Gear pump filling

Filling Range50-30000 mL

Filling Heads4

Speed20-25 Bottles/Min

Accuracy±1%

Filling Features

MethodGear pump filling

Anti-dripYes

Anti-foamYes

Quick CleanYes

Bottle & Application

Suitable LiquidCompatible low-to-medium viscosity liquids such as oils, essences, e-liquids, liquid fertilizer, detergent, shampoo and chemical liquids

Bottle TypeCream jars, personal care bottles, beverage bottles

Mouth Range15-100mm

Capacity50-30000 mL

Machine Specification

AutomationFully automatic

IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine304 stainless steel

Contact316 stainless steel, PTFE

Voltage380V

Power4.5 kW

Air Pressure0.6-0.8 MPa

Size1200 x 1500 x 2200mm

CustomizationYes

6-Head Gear Pump Filling Machine

Gear pump filling

Filling Range50-30000 mL

Filling Heads6

Speed30-35 Bottles/Min

Accuracy±1%

Filling Features

MethodGear pump filling

Anti-dripYes

Anti-foamYes

Quick CleanYes

Bottle & Application

Suitable LiquidCompatible low-to-medium viscosity liquids such as oils, essences, e-liquids, liquid fertilizer, detergent, shampoo and chemical liquids

Bottle TypeCream jars, personal care bottles, beverage bottles

Mouth Range15-100mm

Capacity50-30000 mL

Machine Specification

AutomationFully automatic

IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine304 stainless steel

Contact316 stainless steel, PTFE

Voltage380V

Power6 kW

Air Pressure0.6-0.8 MPa

Size1500 x 1500 x 2200mm

CustomizationYes

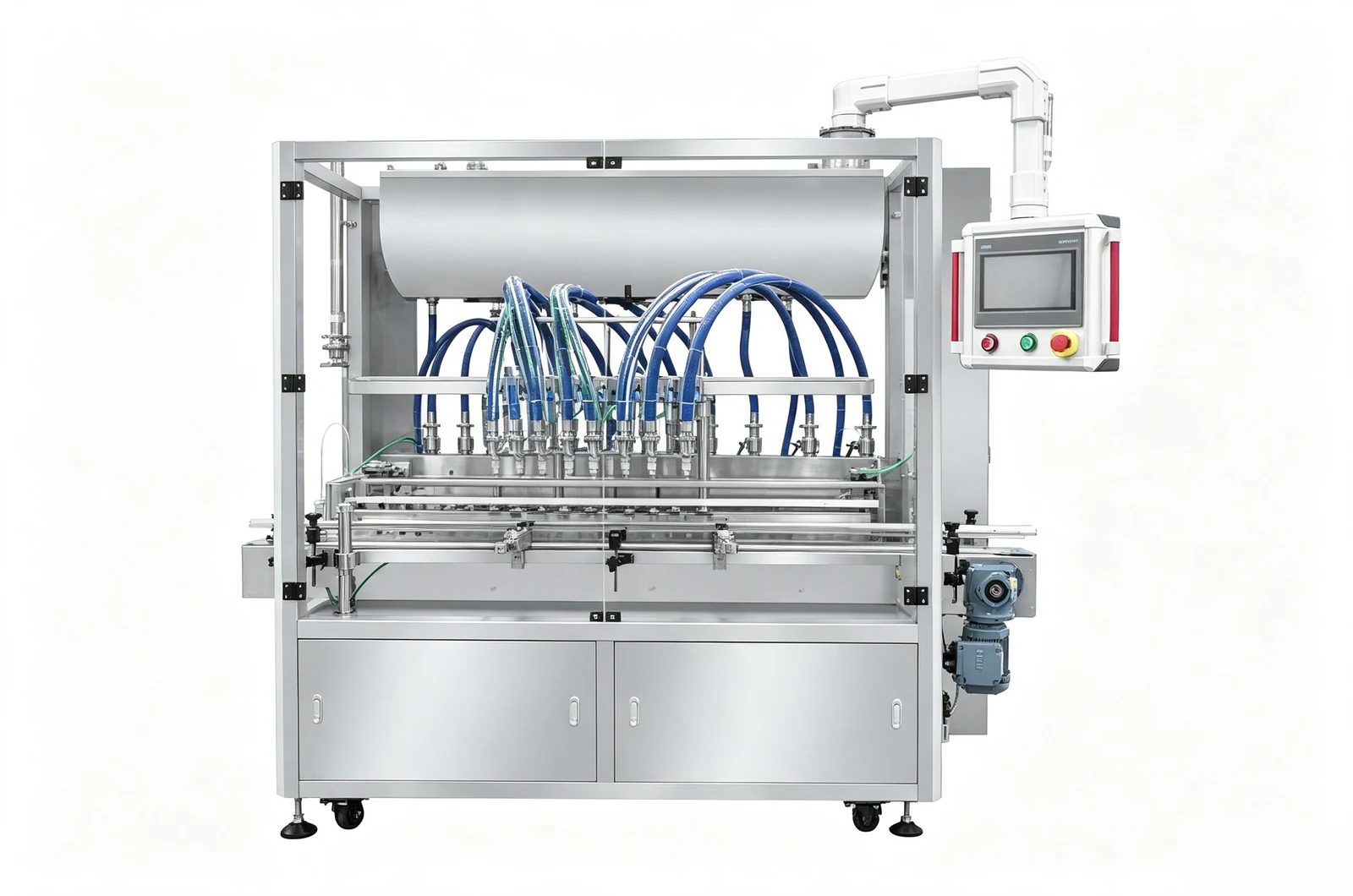

8-Head Servo Gear Pump Filling Machine

Verified configuration

Filling Range50-5000 mL

Filling Heads8

Speed 40-45 Bottles/Min

Accuracy±1%

Filling Features

MethodServo-driven gear pump

Head ControlIndependent setting and enable/disable

Filling MotionLifting filling

Nozzle ControlIndependent shutoff valve

Quick CleanYes

Bottle & Application

Suitable ProductsHoney, jam, edible oil, lubricant oil, detergent, shower gel, gel, cream, sauce and syrup

Viscosity1-30000 mPa·s

Bottle SizeDiameter 30-120mm; height 60-320mm

Mouth DiameterMinimum 12mm

Machine Specification

Product Contact316L stainless steel

Tank150L with level detection

Voltage380V, three-phase

Power7.5 kW

Air Pressure0.6-0.8 MPa

Size1700 x 1500 x 2100mm

WeightApprox. 950kg

Speed Basis50-500mL medium-viscosity daily chemical or sauce products; final output depends on the actual product, container and connected equipment.

10-Head Gear Pump Filling Machine

Gear pump filling

Filling Range50-30000 mL

Filling Heads10

Speed45-50 Bottles/Min

Accuracy±1%

Filling Features

MethodGear pump filling

Anti-dripYes

Anti-foamYes

Quick CleanYes

Bottle & Application

Suitable LiquidCompatible low-to-medium viscosity liquids such as oils, essences, e-liquids, liquid fertilizer, detergent, shampoo and chemical liquids

Bottle TypeCream jars, personal care bottles, beverage bottles

Mouth Range15-100mm

Capacity50-30000 mL

Machine Specification

AutomationFully automatic

IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine304 stainless steel

Contact316 stainless steel, PTFE

Voltage380V

Power9 kW

Air Pressure0.6-0.8 MPa

Size2000 x 1500 x 2200mm

CustomizationYes

Configuration Logic

What Is The Same And What Needs To Be Confirmed?

Same Core Structure

Gear pump dosing principle
PLC + HMI control system
Adjustable filling volume
Anti-drip nozzle can be configured
Stainless steel machine frame

Need To Confirm

Liquid viscosity and flow behavior
Required filling volume range
Bottle size and bottle stability
Pump material compatibility
Required production speed

Bottle And Line Matching

Recommended Bottle Types And Line Connection

Recommended Bottle Types

Round bottles
Small glass bottles
Flat bottles
Oil bottles
Essence bottles
Chemical liquid bottles

Recommended Cap Machines

Cap Type	Recommended Machine
Screw cap	Linear capping machine / tracking capping machine
Pump cap	Automatic four-wheel capping machine for tightening; separate pump-head feeding and placement equipment when required
Trigger sprayer	Trigger sprayer capping machine
Press cap	Press capping machine
Large round cap	Four-wheel servo capping machine

Working Process

How The Gear Pump Filling Machine Works

Step 01Bottle feeding

Step 02Bottle positioning

Step 03Gear pump dosing

Step 04Nozzle filling

Step 05Anti-drip control

Step 06Bottle output

Step 07Capping connection

Step 08Labeling connection

The filling machine can work as a standalone filling unit, or connect with capping, labeling, coding and collecting systems to build a complete automatic production line.

Filling Method Value

Why Choose Gear Pump Filling?

Main Advantages

Good for precision liquid dosing
Suitable for low to medium-viscosity products
Stable filling repeatability
Filling volume can be adjusted on touch screen

Production Benefits

Compact and flexible filling solution
Suitable for small and medium bottle volumes
Can connect with automatic capping and labeling
Pump material can be selected by liquid property

Method Comparison

Comparison With Other Filling Methods

Filling Method	Best For	Selection Note
Servo Piston Filling	Viscous liquid, detergent, shampoo, lotion	Best for stable accuracy and medium/high viscosity liquids
Gear Pump Filling	Compatible low- to medium-viscosity oil, essence, liquid fertilizer, detergent and shampoo	Suitable when viscosity, foaming behavior and product compatibility support gear-pump dosing
Peristaltic Pump Filling	Clean liquid, reagent, essential oil	Cleaner liquid path and easy tube replacement
Flow Meter Filling	Large-volume low-viscosity liquid	Better for volume metering and larger containers
Rotor Pump Filling	Viscous and flowing products	Better for stable transfer of thicker liquids
Anti-corrosion Filling	Corrosive chemical or agrochemical liquid	Better material resistance

Real Machine Videos

Real Gear Pump Filling Machine Videos

Verified 8-Head Machine

8-Head Servo Gear Pump Filling Machine Video

Watch the real 23-second running test supplied for this exact eight-head configuration.

6-Head Production Line

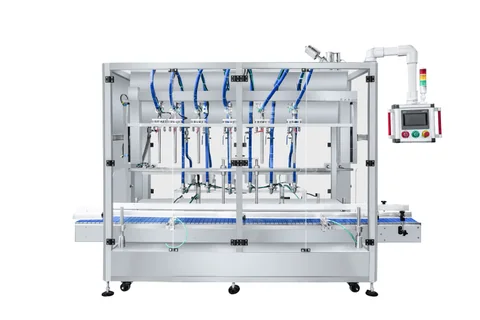

6-Head Gear Pump Filling Line Video

Watch a real 6-head gear pump filling line with bottle feeding, capping and labeling connection.

2-Head Machine Test

2-Head Gear Pump Filling Machine Video

View the real 2-head gear pump filling machine running test and filling performance.

After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your gear pump filling machine project. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

Send Project Details View Information Checklist

Recommended configurationMachine type, head or station quantity and required options.
Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
Written quotationConfirmed scope, available options, exclusions and commercial terms.
Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.

Engineering Definitions

How To Read The Published Gear Pump Filling Machine Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Filling range

Published minimum and maximum volumes are selection references. The actual working range is confirmed with the product and container.

Filling heads

Head quantity describes the installed dosing positions; it does not define output by itself.

Speed basis

A sustained bottles-per-minute target must state filling volume, product behavior, bottle format and line conditions.

Accuracy basis

The measuring method, sample count, tolerance and operating conditions are written into the agreed FAT plan.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

Approved general arrangement or layout
English operation manual
Electrical diagram
Pneumatic diagram where applicable
PLC program backup
Agreed FAT criteria and record
Operation training
Recommended spare-parts list

1 yearWarranty

Within 2 hoursOnline response

Remote + onsiteCommissioning options

Project-specificSpare-parts list confirmed before shipment

Download Engineering Datasheet Review Factory Acceptance Review engineering evidence

FAQ

Common Questions Before Buying

What products can a gear pump filling machine handle?

Gear pump filling can be configured for oil, essence, e-liquid, liquid fertilizer, detergent, shampoo and compatible low- to medium-viscosity chemical liquids. Final pump, seal, hose and nozzle selection is confirmed from the actual product and required cleaning process.

Is it suitable for thick lotion?

Thicker lotion or paste needs a project-specific review. The 8-head servo gear-pump configuration on this page lists gel and cream applications, but this does not apply to every gear-pump configuration. Compare servo piston or rotor pump filling where appropriate, and confirm suitability through product testing.

Can the pump material be customized?

Yes. Pump and contact material can be selected according to the liquid property.

Can it connect with capping and labeling machines?

Yes. It can be integrated into a complete filling capping labeling line.

Can you test with our liquid sample?

Yes. Liquid and bottle samples can be tested before final configuration.

Back To Filling Machines Send Inquiry

Buyer Selection Guide

Gear Pump Filling Machine Selection Answers For Buyers

Best Used For

Essential oil, e-liquid, toner, fragrance, light oil, chemical liquid and other clean low-to-medium viscosity products.

When To Choose It

Choose this machine when the product is not too thick, does not contain large particles and needs accurate pump metering for small or medium bottle volumes.

Not Recommended For

Do not assume every configuration can handle thick cream or paste. Review the 8-head servo example separately and confirm the actual product by sample testing. Liquids with particles or incompatible chemistry also require a project-specific review.

Before Quotation

Liquid name, viscosity, filling volume, bottle mouth diameter, target speed, material compatibility requirement and cleaning requirement.

More Compatible Bottle Formats

Daily chemical, fertilizer and lubricant containers

Gear pump filling is not limited to the small bottles shown above. The same machine family can be configured for compatible shampoo, detergent, liquid fertilizer, chemical liquid and lubricant containers after the actual product and package are reviewed.

Shampoo and personal care bottle example for gear pump filling — **Shampoo And Personal Care**Flip-top or pump bottle

Handled detergent bottle example for gear pump filling — **Detergent Bottle**Handled HDPE container

Liquid fertilizer and compatible chemical jerrycan example for gear pump filling — **Liquid Fertilizer And Chemical**Jerrycan with screw closure

Lubricant oil bottle example for gear pump filling — **Lubricant And Oil**Handled oil bottle

Representative containers only. Final pump material, seals, hoses, nozzle, filling range and line configuration are confirmed from the actual liquid, viscosity, bottle opening, target volume, cleaning requirement and required output.
