Clean Liquid Filling

Peristaltic Pump Filling Machine For Perfume, Essential Oil, Reagent And Clean Liquids

Clean-path small-volume filling solution for products that require low contamination and easy tube replacement.

Get A Quote Send Bottle & Liquid Details View Configurations Download Datasheet

Machine Overview

What Is This Machine Used For?

Clean Liquid Filling

Clean liquid path for small-volume filling

Peristaltic pump filling machine uses pump tubing to transfer liquid, reducing direct contact between liquid and machine parts. It is suitable for clean liquids and small-volume products.

Peristaltic PumpClean PathSmall VolumeEasy Tube Change

Clean Small-volume Compatibility

Small Bottle, Liquid And Closure Examples

These examples show clean, low-viscosity small-volume products commonly handled through a peristaltic filling path. The closures shown represent possible downstream packaging steps.

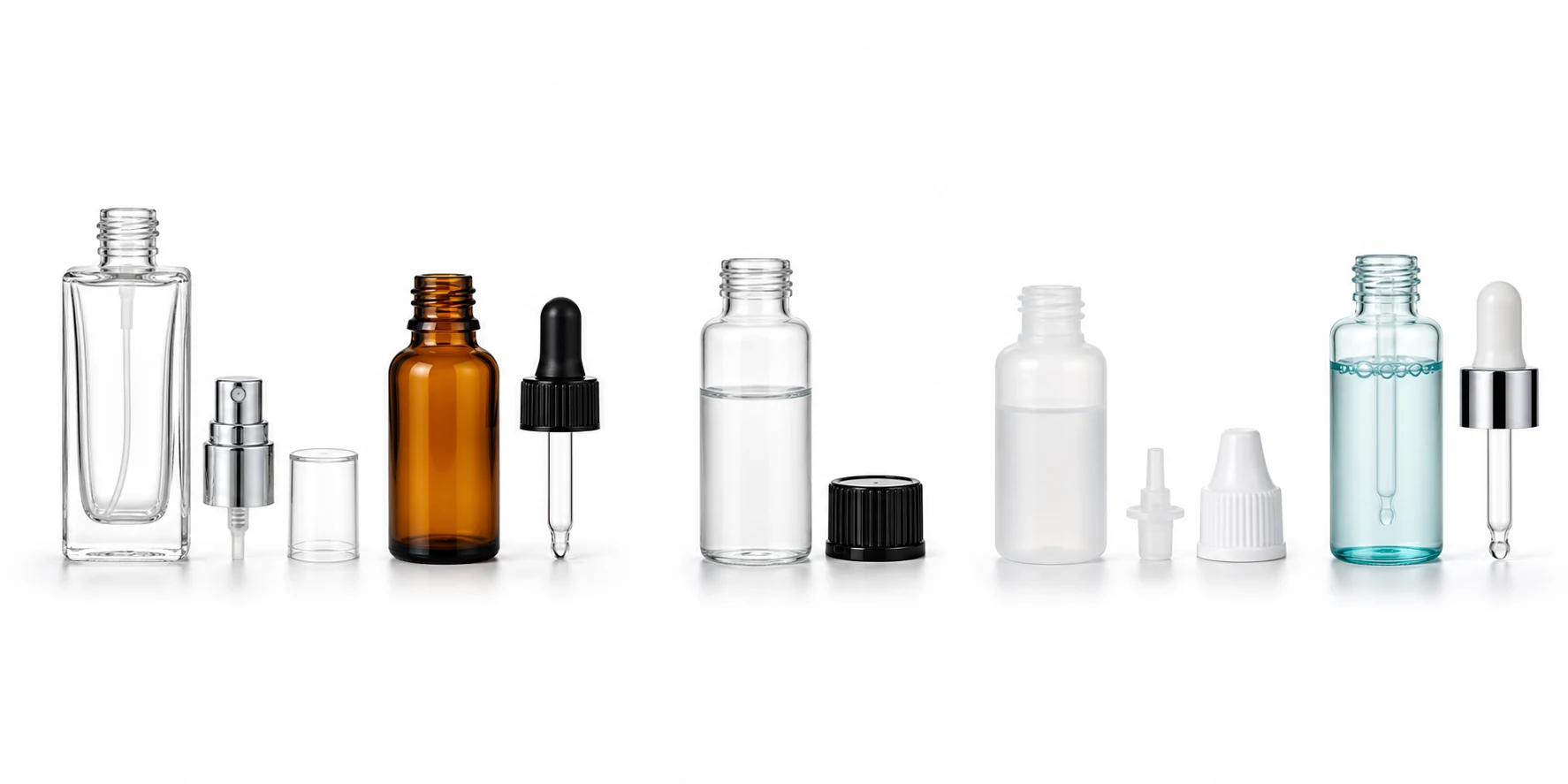

Perfume, essential oil, reagent, eye drop and cosmetic serum bottles with matching spray, dropper, screw and nozzle closures for peristaltic filling — Actual dose, viscosity, chemical compatibility and bottle opening determine the tube, nozzle and filling settings. Closure insertion or capping requires the matching downstream station.

Perfume BottleFine-mist spray closure

Essential Oil BottleGlass dropper closure

Reagent BottleSmall screw cap

Eye-drop BottleNozzle insert and tamper cap

Cosmetic SerumDropper or small screw closure

Liquid Compatibility

Suitable And Not Recommended Liquids

Suitable Liquids

Perfume
Essential oil
Reagent
Pharmaceutical liquid after requirement confirmation
Clean cosmetic liquid
Low-viscosity small-volume liquid

Not Recommended For

High-viscosity paste
Large-volume high-speed filling
Liquids with particles
Products that damage pump tubing
Strong corrosive liquid without compatible tube material

Machine Configurations

Peristaltic Pump Filling Machine Configurations

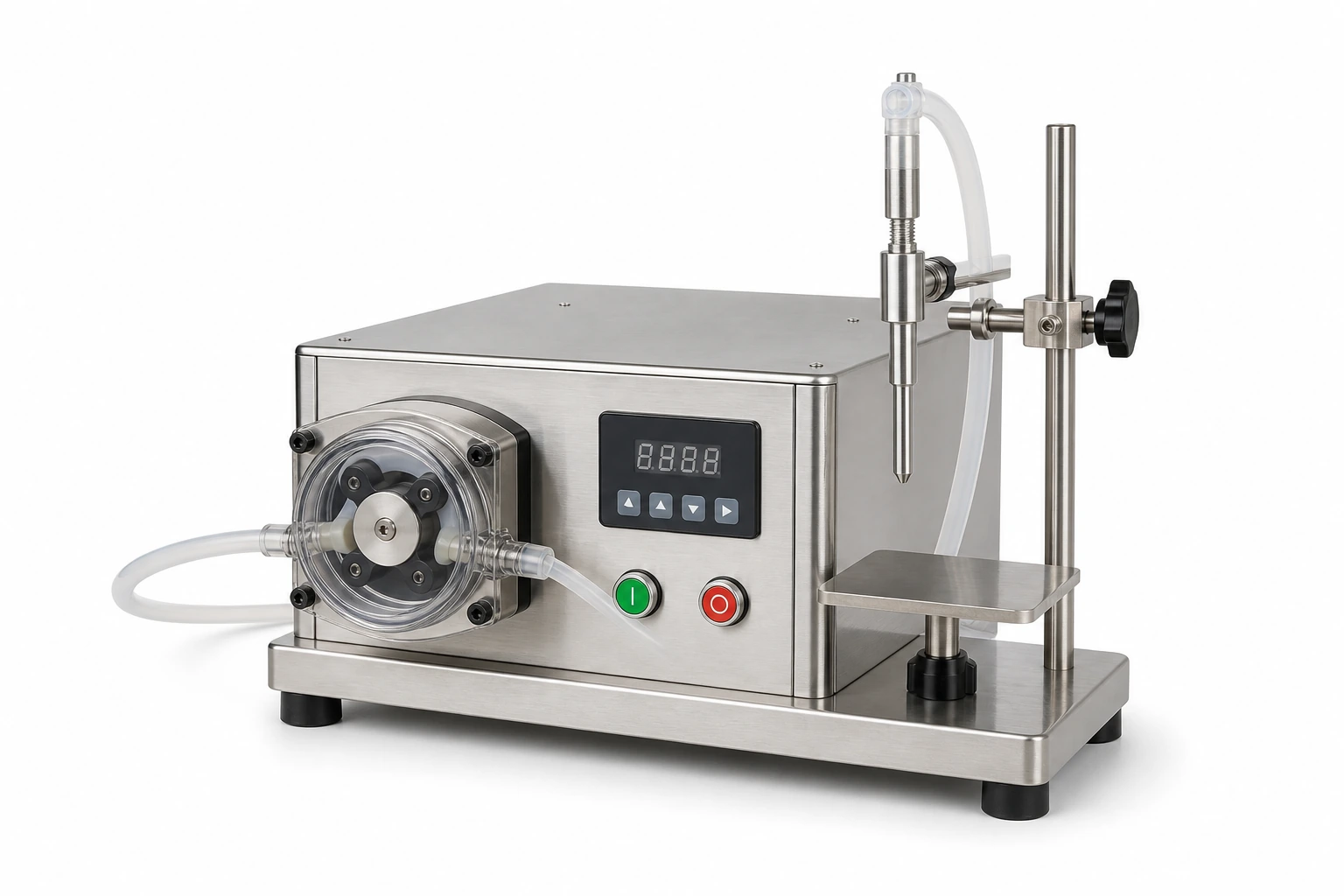

Semi-automatic Single-Head Peristaltic Pump Filling Machine

Peristaltic / magnetic pump filling

Filling Range50-500 mL

Filling Heads1

Speed5-10 Bottles/Min

Accuracy±1%

Filling Features

MethodPeristaltic / magnetic pump filling

Anti-dripYes

Anti-foamYes

Quick CleanYes

Bottle & Application

Suitable LiquidLow-viscosity clean liquids such as perfume, essential oil, reagent and pharmaceutical liquids

Bottle TypeCream jars, personal care bottles, beverage bottles

Mouth Range15-100mm

Capacity50-500 mL

Machine Specification

AutomationSemi-automatic

IndustryFood & beverage, daily chemical & personal care, alcohol products

Machine304 stainless steel

Contact316 stainless steel, PTFE

Voltage380V

Power1.2 kW

Air Pressure0.6-0.8 MPa

CustomizationYes

6-Head Peristaltic Pump Filling Machine

Peristaltic Pump Filling

Filling Range10-1000 mL

Filling Heads6

Speed20-40 Bottles/Min

Accuracy±1%

Filling Features

MethodPeristaltic pump filling

Suitable TubeSilicone or PharMed tubing

Pump HeadYZ15 / YZ25

Tube ChangeQuick and clean product-path change

Bottle & Application

Suitable LiquidLow-viscosity liquids, reagents and pharmaceutical liquids

Bottle TypeSmall glass or plastic bottles; confirm with samples

Capacity10-1000 mL, depending on selected tubing

Product Contact PathReplaceable pump tubing

Machine Specification

AutomationFully automatic

VoltageAC 220V, 50Hz

Power600W

Size1200 × 1350 × 1800 mm

CustomizationYes

8-Head Peristaltic Pump Filling Machine

Peristaltic Pump Filling

Filling Range10-1000 mL

Filling Heads8

Speed30-60 Bottles/Min

Accuracy±1%

Filling Features

MethodPeristaltic pump filling

Suitable TubeSilicone or PharMed tubing

Pump HeadYZ15 / YZ25

Tube ChangeQuick and clean product-path change

Bottle & Application

Suitable LiquidLow-viscosity liquids, reagents and pharmaceutical liquids

Bottle TypeSmall glass or plastic bottles; confirm with samples

Capacity10-1000 mL, depending on selected tubing

Product Contact PathReplaceable pump tubing

Machine Specification

AutomationFully automatic

VoltageAC 220V, 50Hz

Power800W

Size1500 × 1350 × 1800 mm

CustomizationYes

Configuration Logic

What Should Be Confirmed Before Selection?

Same Core Structure

Peristaltic pump transfer
Replaceable pump tube
Small-volume filling logic
PLC + HMI control optional
Compact filling structure

Need To Confirm

Tube material compatibility
Filling volume range
Required accuracy
Liquid cleanliness requirement
Bottle and cap type

Bottle And Line Matching

Recommended Bottle Types And Line Connection

Recommended Bottle Types

Small glass bottles
Perfume bottles
Essential oil bottles
Reagent bottles
Dropper bottles
Small cosmetic bottles

Recommended Cap Machines

Cap Type	Recommended Machine
Screw cap	Linear capping machine / tracking capping machine
Pump cap	Pump head capping machine
Trigger sprayer	Trigger sprayer capping machine
Press cap	Press capping machine
Large round cap	Four-wheel servo capping machine

Working Process

How The Peristaltic Pump Filling Machine Works

Step 01Bottle feeding

Step 02Bottle positioning

Step 03Tube pump transfer

Step 04Small-volume filling

Step 05Nozzle lifting

Step 06Bottle output

Step 07Capping connection

Step 08Labeling connection

The filling machine can work as a standalone filling unit, or connect with capping, labeling, coding and collecting systems to build a complete automatic production line.

Filling Method Value

Why Choose Peristaltic Pump Filling?

Main Advantages

Clean liquid path
Easy tube replacement
Suitable for small-volume products
Lower contamination risk

Production Benefits

Good for perfume and essential oil
Convenient cleaning and changeover
Compact machine layout
Can connect with small bottle capping systems

Method Comparison

Comparison With Other Filling Methods

Filling Method	Best For	Selection Note
Servo Piston Filling	Viscous liquid, detergent, shampoo, lotion	Best for stable accuracy and medium/high viscosity liquids
Gear Pump Filling	Low to medium-viscosity liquid, oil, essence	Better for precision pump dosing
Peristaltic Pump Filling	Clean liquid, reagent, essential oil	Cleaner liquid path and easy tube replacement
Flow Meter Filling	Large-volume low-viscosity liquid	Better for volume metering and larger containers
Rotor Pump Filling	Viscous and flowing products	Better for stable transfer of thicker liquids
Anti-corrosion Filling	Corrosive chemical or agrochemical liquid	Better material resistance

Real Machine Video

Real Machine Videos

6-Head Running Test

6-Head Peristaltic Pump Filling Machine Running Test Video

Watch the real six-head machine filling oral-liquid bottles with stable multi-nozzle operation.

8-Head Running Test

8-Head Peristaltic Pump Filling Machine Running Test Video

Watch the real eight-head machine filling glass bottles and inspect the nozzle arrangement.

After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your Peristaltic Pump Filling Machine For Perfume, Essential Oil, Reagent And Clean Liquids. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

Send Project Details View Information Checklist

Recommended configurationMachine type, head or station quantity and required options.
Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
Written quotationConfirmed scope, available options, exclusions and commercial terms.
Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.

Engineering Definitions

How To Read The Published Peristaltic Pump Filling Machine For Perfume, Essential Oil, Reagent And Clean Liquids Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Filling range

Published minimum and maximum volumes are selection references. The actual working range is confirmed with the product and container.

Filling heads

Head quantity describes the installed dosing positions; it does not define output by itself.

Speed basis

A sustained bottles-per-minute target must state filling volume, product behavior, bottle format and line conditions.

Accuracy basis

The measuring method, sample count, tolerance and operating conditions are written into the agreed FAT plan.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

Approved general arrangement or layout
English operation manual
Electrical diagram
Pneumatic diagram where applicable
PLC program backup
Agreed FAT criteria and record
Operation training
Recommended spare-parts list

1 yearWarranty

Within 2 hoursOnline response

Remote + onsiteCommissioning options

Within 7 daysCommon spares dispatch

Download Engineering Datasheet Review Factory Acceptance Review engineering evidence

FAQ

Common Questions Before Buying

Why use peristaltic pump filling?

It keeps the liquid path cleaner because liquid mainly contacts the tube.

Is it suitable for large-volume products?

Usually no. Flow meter, piston or rotor pump filling is more suitable for large-volume products.

Can it fill essential oil?

Yes. Essential oil and perfume are common applications, but tube material should be confirmed.

Can the tube be replaced?

Yes. Tube replacement is one of the main advantages.

Can it be connected with capping?

Yes. It can connect with plug inserting, capping and labeling systems for small bottles.

Back To Filling Machines Send Inquiry

Buyer Selection Guide

Peristaltic Pump Filling Machine Selection Answers For Buyers

Best Used For

Essence, reagent, e-liquid, eye drop related liquid, perfume, toner and other clean low-viscosity products.

When To Choose It

Choose it when liquid cleanliness, quick tubing replacement and small-volume dosing are more important than high-speed large-volume filling.

Not Recommended For

Not recommended for high-viscosity liquid, abrasive particles, large-volume fast filling or liquids incompatible with the selected tube material.

Before Quotation

Liquid type, filling volume, bottle mouth size, required accuracy, tube material requirement, cleaning frequency and target speed.
