Vacuum Liquid Filling

Vacuum Filling Machine For Perfume, Alcohol, Essential Oil And Small Glass Bottles

Vacuum-assisted filling solution for small bottles and special liquids requiring consistent liquid level and clean filling control.

Get A Quote Send Bottle & Liquid Details View Configurations Download Datasheet

Machine Overview

What Is This Machine Used For?

Vacuum Liquid Filling

Vacuum-assisted filling for small bottles

Vacuum filling machine uses vacuum assistance to control liquid filling and liquid level. It is suitable for small bottles, perfume bottles and special glass bottle applications.

Vacuum SystemSmall BottlesConsistent LevelGlass Bottle Use

Package Compatibility

Bottle, Neck And Closure Examples

Use these examples to identify the bottle family and neck finish for vacuum filling. Closure parts are shown only to help plan the downstream packaging process.

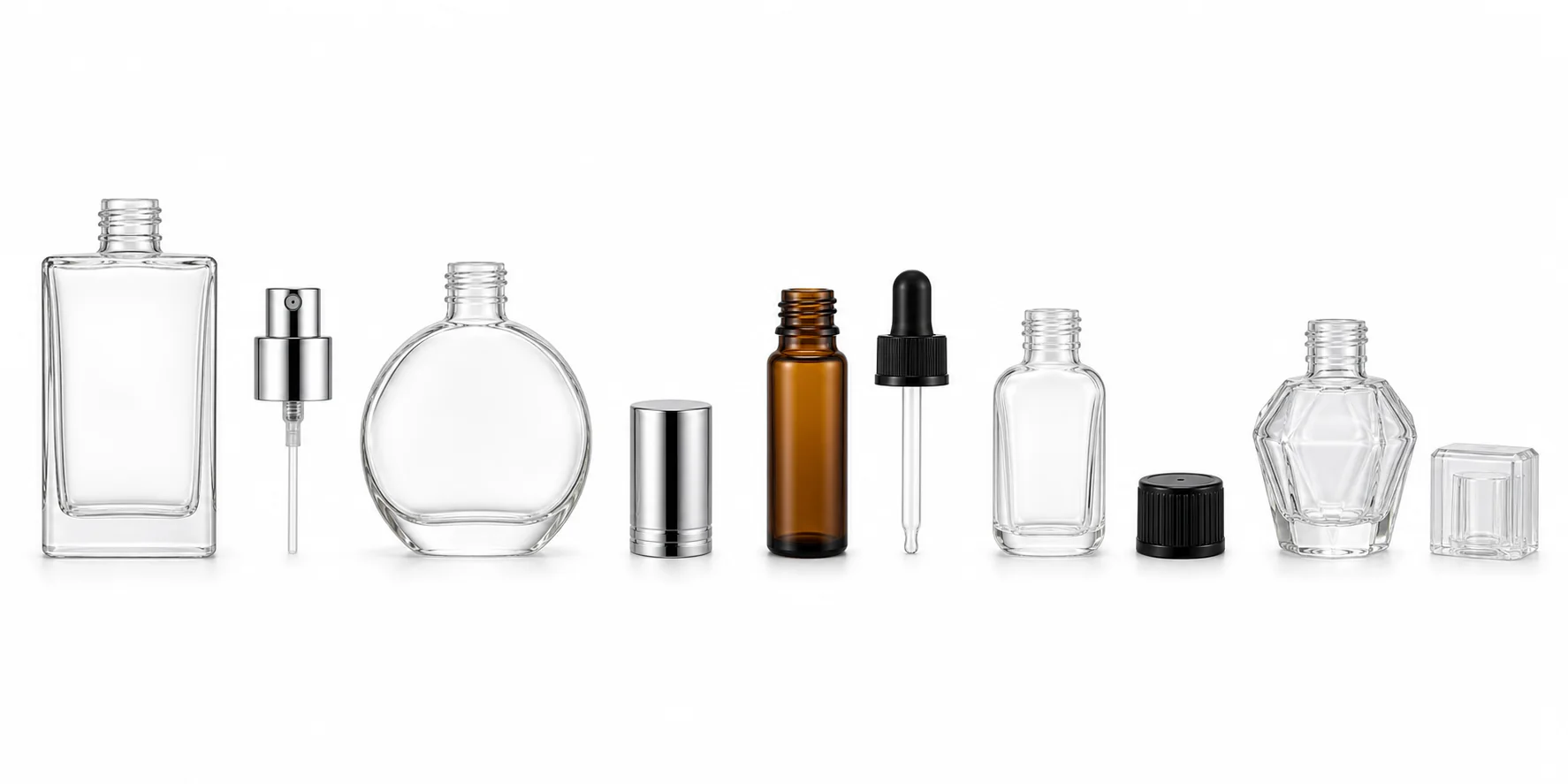

Perfume, essential oil, alcohol and small glass bottle examples with separate closure components for vacuum filling line planning — Actual bottle samples and liquid properties are required before confirming the vacuum nozzle, bottle support and target fill level. This machine performs filling, not capping.

Rectangular Perfume BottleSpray pump and neck finish

Round Fragrance BottleDecorative bottle and overcap

Essential Oil BottleAmber glass and dropper closure

Small Alcohol BottleGlass neck and screw closure

Decorative Glass BottleFragrance pump line planning

Liquid Compatibility

Suitable And Not Recommended Liquids

Suitable Liquids

Perfume
Alcohol
Essential oil
Low-viscosity fragrance liquid
Small-volume clean liquid
Glass bottle products

Not Recommended For

High-viscosity paste
Large-volume daily chemical products
Liquids with particles
Foaming products without testing
Products not suitable for vacuum filling

Machine Configurations

Vacuum Filling Machine Configurations

8-Head Vacuum Filling Machine

Negative-Pressure Equal-Level Filling

Filling Range50-1000 mL

Filling Heads8 Heads

Speed40-60 Bottles/Min

Accuracy±1%

Filling Features

MethodNegative-pressure equal-level filling

Liquid LevelEqual-level filling

Filling Range50-1000 mL; customizable

Accuracy±1%

Product & Bottle

Suitable LiquidsFoaming liquids, alcoholic beverages, disinfectant and windshield washer fluid

Bottle ShapeRound or square bottles

Bottle MaterialRigid plastic bottles with sufficient body strength or glass bottles

Output40-60 Bottles/Min

Machine Specification

Contact PartsSUS304 / SUS316L stainless steel

VoltageAC 220V / 380V, 50Hz

Power2 kW

Air Pressure0.6-0.8 MPa

Size1700 × 1500 × 2200 mm

Configuration Logic

What Should Be Confirmed Before Selection?

Same Core Structure

Vacuum-assisted filling
Small bottle positioning
Liquid level control
Nozzle and bottle mouth matching
Compact filling structure

Need To Confirm

Bottle mouth size
Bottle material and stability
Required liquid level
Vacuum compatibility
Required capping method

Bottle And Line Matching

Recommended Bottle Types And Line Connection

Recommended Bottle Types

Perfume bottles
Essential oil bottles
Small glass bottles
Alcohol bottles
Fragrance bottles
Special small containers

Recommended Cap Machines

Cap Type	Recommended Machine
Screw cap	Linear capping machine / tracking capping machine
Pump cap	Pump head capping machine
Trigger sprayer	Trigger sprayer capping machine
Press cap	Press capping machine
Large round cap	Four-wheel servo capping machine

Working Process

How The Vacuum Filling Machine Works

Step 01Bottle feeding

Step 02Bottle positioning

Step 03Vacuum setup

Step 04Liquid filling

Step 05Level control

Step 06Bottle output

Step 07Capping connection

Step 08Labeling connection

The filling machine can work as a standalone filling unit, or connect with capping, labeling, coding and collecting systems to build a complete automatic production line.

Filling Method Value

Why Choose Vacuum Filling?

Main Advantages

Good for small bottles
Consistent liquid level
Suitable for perfume and alcohol
Useful for glass bottle filling

Production Benefits

Clean and compact filling layout
Can connect with perfume capping systems
Helpful for special bottle applications
Suitable for small-volume packaging

Method Comparison

Comparison With Other Filling Methods

Filling Method	Best For	Selection Note
Servo Piston Filling	Viscous liquid, detergent, shampoo, lotion	Best for stable accuracy and medium/high viscosity liquids
Gear Pump Filling	Low to medium-viscosity liquid, oil, essence	Better for precision pump dosing
Peristaltic Pump Filling	Clean liquid, reagent, essential oil	Cleaner liquid path and easy tube replacement
Flow Meter Filling	Large-volume low-viscosity liquid	Better for volume metering and larger containers
Rotor Pump Filling	Viscous and flowing products	Better for stable transfer of thicker liquids
Anti-corrosion Filling	Corrosive chemical or agrochemical liquid	Better material resistance

Real Machine Video

Real Machine Videos

Machine Test Video

8-Head Vacuum Filling Machine Running Test Video

Watch the real 8-head vacuum filling stage with bottle feeding, simultaneous filling and stable output.

After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your Vacuum Filling Machine For Perfume, Alcohol, Essential Oil And Small Glass Bottles. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

Send Project Details View Information Checklist

Recommended configurationMachine type, head or station quantity and required options.
Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
Written quotationConfirmed scope, available options, exclusions and commercial terms.
Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.

Engineering Definitions

How To Read The Published Vacuum Filling Machine For Perfume, Alcohol, Essential Oil And Small Glass Bottles Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Filling range

Published minimum and maximum volumes are selection references. The actual working range is confirmed with the product and container.

Filling heads

Head quantity describes the installed dosing positions; it does not define output by itself.

Speed basis

A sustained bottles-per-minute target must state filling volume, product behavior, bottle format and line conditions.

Accuracy basis

The measuring method, sample count, tolerance and operating conditions are written into the agreed FAT plan.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

Approved general arrangement or layout
English operation manual
Electrical diagram
Pneumatic diagram where applicable
PLC program backup
Agreed FAT criteria and record
Operation training
Recommended spare-parts list

1 yearWarranty

Within 2 hoursOnline response

Remote + onsiteCommissioning options

Within 7 daysCommon spares dispatch

Download Engineering Datasheet Review Factory Acceptance Review engineering evidence

FAQ

Common Questions Before Buying

What products are suitable for vacuum filling?

Perfume, alcohol, essential oil and small glass bottle liquids are common applications.

Can it fill shampoo?

No. Shampoo and lotion are more suitable for servo piston or rotor pump filling.

Does it control liquid level?

Yes. Vacuum filling is often used when consistent liquid level is important.

Can it connect with capping?

Yes. It can connect with small bottle capping and labeling machines.

Do you need bottle samples?

Yes. Bottle mouth, bottle stability and liquid behavior should be tested.
