Flat Bottle Labeling Machine For Front And Back Labels

Automatic labeling solution for flat bottles, square bottles and containers requiring single-side or double-side label application.

Get A Quote Send Bottle & Label Details View Configurations Download Datasheet

Machine Overview

What Is This Machine Used For?

Flat Bottle Labeling

Front and back labeling for flat bottles

Flat bottle labeling machine applies labels to flat or square bottles. It can be configured for single-side labeling or double-side front and back label application.

Flat BottlesFront/Back LabelsDaily ChemicalLine Ready

Bottle And Label Compatibility

Flat Bottle And Label Shape Examples

These examples show flat, rectangular and square containers with broad panels for single-side or front-and-back label application.

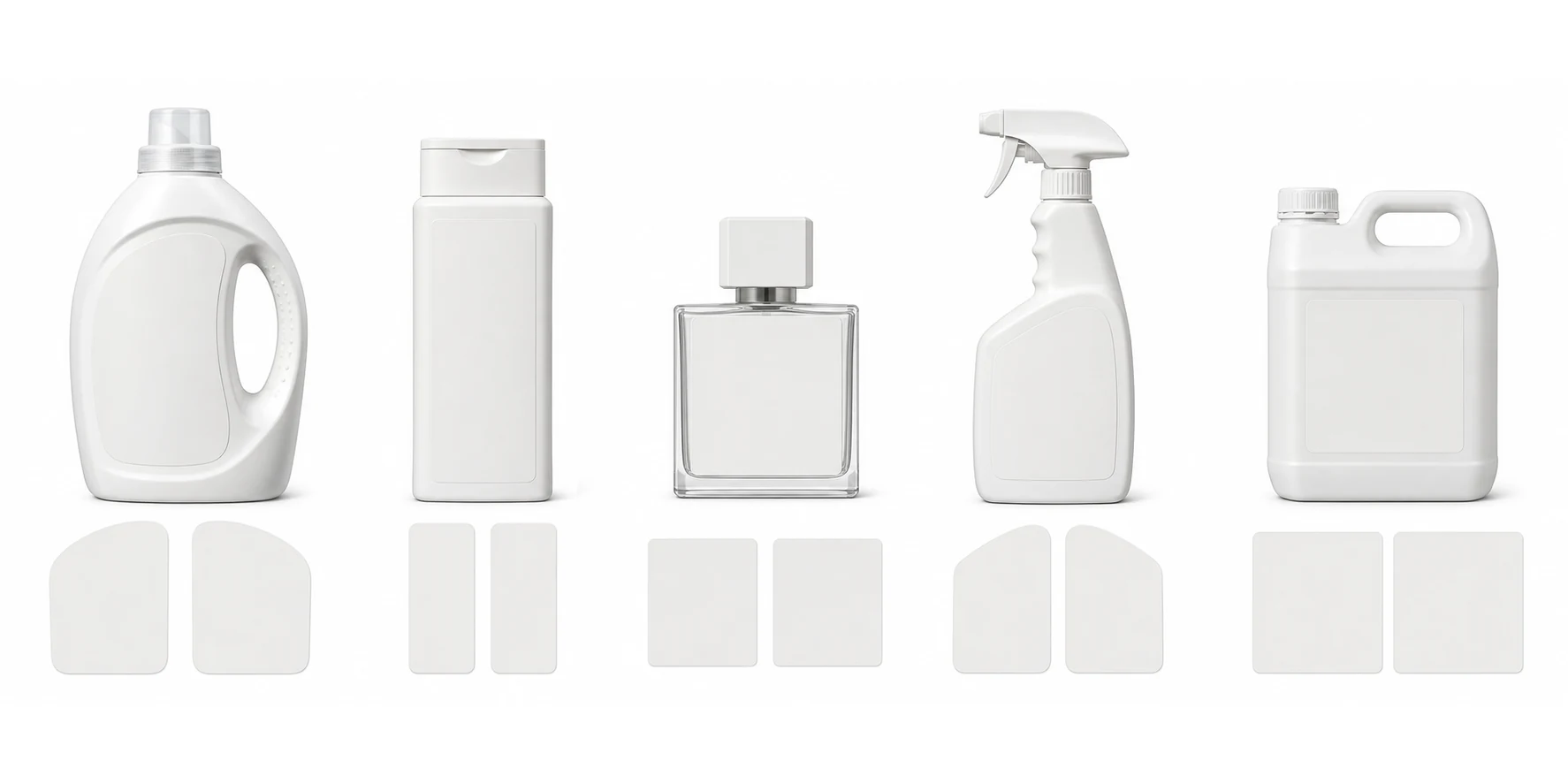

Flat detergent, personal care, cosmetic, cleaning and chemical containers with separate blank panel labels — Actual bottle surface, panel size, label material, label dimensions and placement position determine the guides, label separation and application-head settings.

Flat Detergent BottleCurved panel label

Personal Care BottleTall rectangular label

Square Cosmetic BottleSquare panel label

Cleaning Product BottleShaped panel label

Flat Chemical ContainerWide rectangular label

Bottle And Label Compatibility

Suitable And Not Recommended Bottles

Suitable Bottles

Flat bottles
Square bottles
Daily chemical bottles
Cosmetic flat bottles
Cleaning product bottles
Chemical flat containers

Not Recommended For

Round bottles requiring wrap-around labeling
Bottom label applications
Shrink sleeve labels
Very unstable soft bottles
Irregular bottles without sample testing

Machine Configurations

Flat Bottle Labeling Machine Configurations

Double Side Labeling Machine

Roll-on labeling

Bottle TypeRound / square bottles

Label SizeWidth 20-200mm, length 20-500mm

Speed60 Bottles/Min

Accuracy±2mm

Labeling Features

MethodRoll-on labeling

Label SizeWidth 20-200mm, length 20-500mm

Roll Inner Dia.Ø76mm

Roll Outer Dia.Ø300mm

CodingOptional

Bottle & Application

Bottle TypeRound / square bottles

IndustryFood & beverage, daily chemical & personal care, alcohol products

Suitable ContainersShampoo / shower gel plastic bottles, cosmetic flat glass bottles

Machine Specification

AutomationFully automatic

Machine304 stainless steel

Voltage380V

Power2.2 kW

Air Pressure0.6-0.8 MPa

Size3000 x 1800 x 1800mm

CustomizationYes

Configuration Logic

What Should Be Confirmed Before Selection?

Same Core Structure

Bottle side guiding
Label peeling system
Pressing roller or brush
PLC + HMI control
Line integration capability

Need To Confirm

Single-side or double-side labeling
Bottle width and height
Label size and roll direction
Required speed
Bottle stability during conveying

Bottle And Label Matching

Recommended Bottle Types And Label Connection

Recommended Bottle Types

Flat bottles
Square bottles
Shampoo bottles
Detergent bottles
Cosmetic bottles
Cleaner bottles

Bottle / Label Matching Notes

Bottle Or Label Type	Recommended Labeling Structure
Round bottles	Wrap-around or positioning labeling
Flat bottles	Single side or double side labeling
Square bottles	Front/back labeling with guides
Bottom label	Bottom conveyor and label applicator
Shrink sleeve	Sleeve labeling and shrink tunnel

Working Process

How The Flat Bottle Labeling Machine Works

Step 01Bottle feeding

Step 02Bottle separation

Step 03Side guiding

Step 04Label peeling

Step 05Label application

Step 06Label pressing

Step 07Bottle output

Step 08Line connection

The labeling machine can work as a standalone labeling unit, or connect with filling, capping, coding and collecting systems to build a complete packaging line.

Labeling Method Value

Why Choose Flat Bottle Labeling?

Main Advantages

Suitable for front/back labels
Good for flat daily chemical bottles
Stable label placement
Can connect with production lines

Production Benefits

Improves packaging consistency
Supports single or double side labeling
Good for detergent and cosmetic products
Customizable by bottle and label sample

Method Comparison

Comparison With Other Labeling Methods

Labeling Method	Best For	Selection Note
Round Bottle Labeling	Round bottles and wrap-around labels	Best for cylindrical bottles
Flat Bottle Labeling	Flat bottles and front/back labels	Best for flat or square containers
Double Side Labeling	Front and back labels on flat or square bottles	Best when two label faces must be applied in one process
Bottom Labeling	Bottom surface label placement	Best for product identification labels
Sleeve Labeling	Shrink sleeve and full-body packaging	Best for full wrap visual packaging
Star Wheel Round Bottle Labeling	Higher-speed round bottle handling	Best for stable bottle transfer and positioning

After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your Flat Bottle Labeling Machine For Front And Back Labels. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

Send Project Details View Information Checklist

Recommended configurationMachine type, head or station quantity and required options.
Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
Written quotationConfirmed scope, available options, exclusions and commercial terms.
Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.

Engineering Definitions

How To Read The Published Flat Bottle Labeling Machine For Front And Back Labels Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Container range

Bottle diameter, height, stability and orientation are checked with actual formats before the guide system is released.

Label range

Label size, roll direction, gap, backing paper and required position are confirmed from drawings or a physical roll.

Speed basis

A sustained bottles-per-minute target depends on container handling, label length, sensor response and line conditions.

Position result

Position tolerance, appearance, missing-label response and inspection method are agreed for the project FAT.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

Approved general arrangement or layout
English operation manual
Electrical diagram
Pneumatic diagram where applicable
PLC program backup
Agreed FAT criteria and record
Operation training
Recommended spare-parts list

1 yearWarranty

Within 2 hoursOnline response

Remote + onsiteCommissioning options

Within 7 daysCommon spares dispatch

Download Engineering Datasheet Review Factory Acceptance Review engineering evidence

FAQ

Common Questions Before Buying

Can it label both front and back sides?

Yes. It can be configured for double-side labeling.

Can it label round bottles?

Round bottles should use round bottle labeling machines.

What label samples are needed?

Label size, label roll direction and bottle samples are needed.

Can it connect with a complete line?

Yes. It can connect with filling, capping and coding systems.

Can it handle different bottle sizes?

Yes, within the adjustable range, but changeover should be confirmed.

Back To Labeling Machines Send Inquiry

Buyer Selection Guide

Flat Bottle Labeling Machine Selection Answers For Buyers

Best Used For

Flat bottles, square bottles, detergent bottles, shampoo bottles, chemical bottles and personal care packaging.

When To Choose It

Choose it when the bottle has flat sides and needs single-side, double-side or front-and-back labeling.

Not Recommended For

Not recommended for fully round bottles unless a round bottle labeling or positioning labeling structure is selected.

Before Quotation

Bottle width, height, thickness, label size, label roll direction, single or double side requirement and target speed.
