Corrosive Liquid Filling

Anti-corrosion Filling Machine For Pesticide, Chemical And Corrosive Liquids

Special material filling solution for corrosive chemical, agrochemical and other liquids requiring corrosion-resistant contact parts.

View Running VideoGet A QuoteSend Bottle & Liquid DetailsView ConfigurationsDownload Datasheet
Home/Filling Machines/Anti-corrosion Filling Machine
Machine Overview

What Is Anti-Corrosion Filling Machine Used For?

Corrosive Liquid Filling

Corrosion-resistant filling for chemical liquids

Anti-corrosion filling machine is configured for corrosive or special chemical liquids. Contact parts can be customized according to the liquid property and material compatibility requirement.

Corrosion ResistantChemical LiquidPesticide LiquidCustom Material
Chemical Package Compatibility

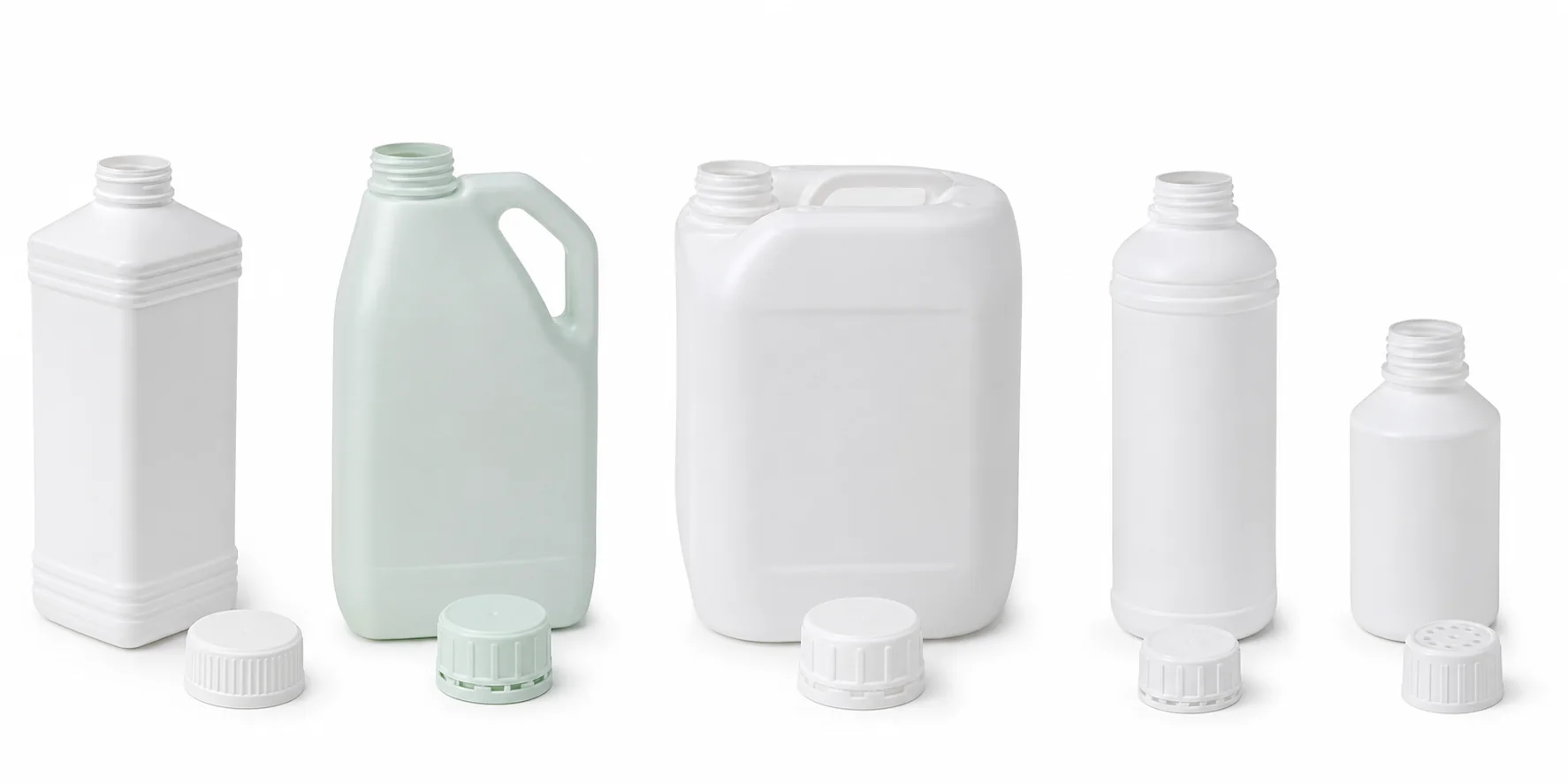

Corrosive Liquid And Container Examples

Corrosion-resistant filling configurations are selected for pesticide, agrochemical, cleaning chemical, acidic or alkaline liquids after compatibility testing.

Pesticide, agrochemical, cleaning chemical, disinfectant and laboratory chemical plastic containers with separate compatible caps
The customer must provide the liquid composition or safety data, container and closure samples. All wetted materials require compatibility confirmation before production.
Pesticide BottleHDPE container and screw cap
Agrochemical BottleHandled plastic package
Chemical JerrycanTamper-evident closure
Disinfectant BottleCorrosion-resistant package
Laboratory Chemical BottleVented or standard cap
Liquid Compatibility

Suitable And Not Recommended Liquids

Suitable Liquids

  • Pesticide liquid
  • Agrochemical liquid
  • Corrosive chemical liquid
  • Disinfectant with material compatibility
  • Cleaning chemical
  • Acid or alkaline liquid after testing

Not Recommended For

  • Unknown chemical liquid without MSDS
  • Liquids incompatible with selected contact material
  • Sterile pharmaceutical products
  • Liquids with large particles without testing
  • Highly volatile products without safety evaluation
Method Comparison

Comparison With Other Filling Methods

Filling MethodBest ForSelection Note
Servo Piston FillingViscous liquid, detergent, shampoo, lotionBest for stable accuracy and medium/high viscosity liquids
Gear Pump FillingLow to medium-viscosity liquid, oil, essenceBetter for precision pump dosing
Peristaltic Pump FillingClean liquid, reagent, essential oilCleaner liquid path and easy tube replacement
Flow Meter FillingLarge-volume low-viscosity liquidBetter for volume metering and larger containers
Rotor Pump FillingViscous and flowing productsBetter for stable transfer of thicker liquids
Anti-corrosion FillingCorrosive chemical or agrochemical liquidBetter material resistance
Real Machine Video

Real Machine Videos

Anti-corrosion Filling Machine Running Test Video
Machine Test Video

Anti-corrosion Filling Machine Running Test Video

Watch a real Anti-corrosion Filling Machine running test with bottle handling and stable filling performance.

Watch Running Video →
Machine Configurations

Anti-corrosion Filling Machine Configurations

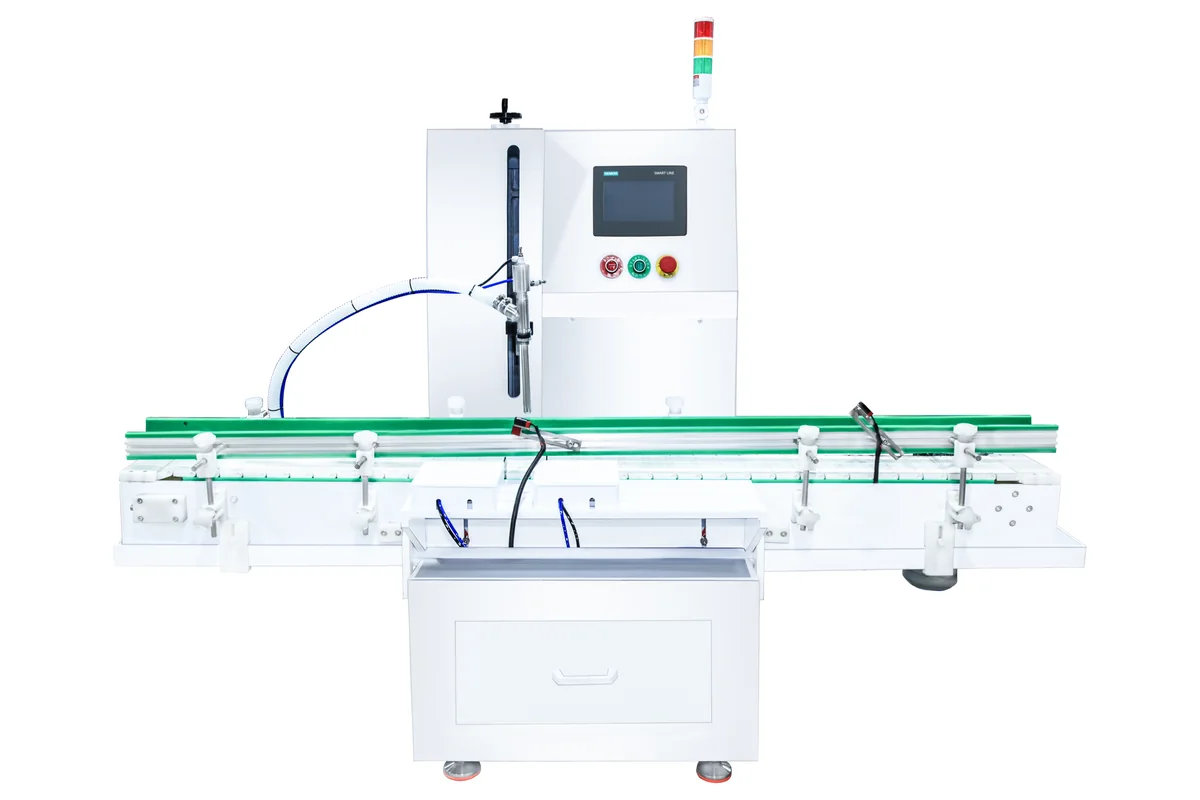

Single-head Anti-corrosion Filling Machine

Single-head Anti-corrosion Filling Machine

Gear pump / gravity filling
Filling Range50-30000 mL
Filling Heads1
Speed5-10 Bottles/Min
Accuracy±1%

Reference configuration, not a confirmed quotation.Working range and output depend on the product, filling volume, container and line conditions. Confirm chemical composition or safety data and wetted-material compatibility before final selection. How to read these parameters

Filling Features

MethodGear pump / gravity filling
Anti-dripYes
Anti-foamYes
Quick CleanYes

Bottle & Application

Suitable LiquidCorrosive chemical liquids, pesticide liquids, disinfectants and agrochemical liquids
Bottle TypeContainer suitability requires sample review
Mouth Range15-100mm
Capacity50-30000 mL

Machine Specification

AutomationFully automatic
IndustryDaily chemical cleaning/disinfection, agriculture and chemical industry
Machine304 stainless steel
Contact316 stainless steel, PTFE
Voltage380V
Power1.5 kW
Air Pressure0.6-0.8 MPa
Size1000 x 1200 x 2800mm
CustomizationYes

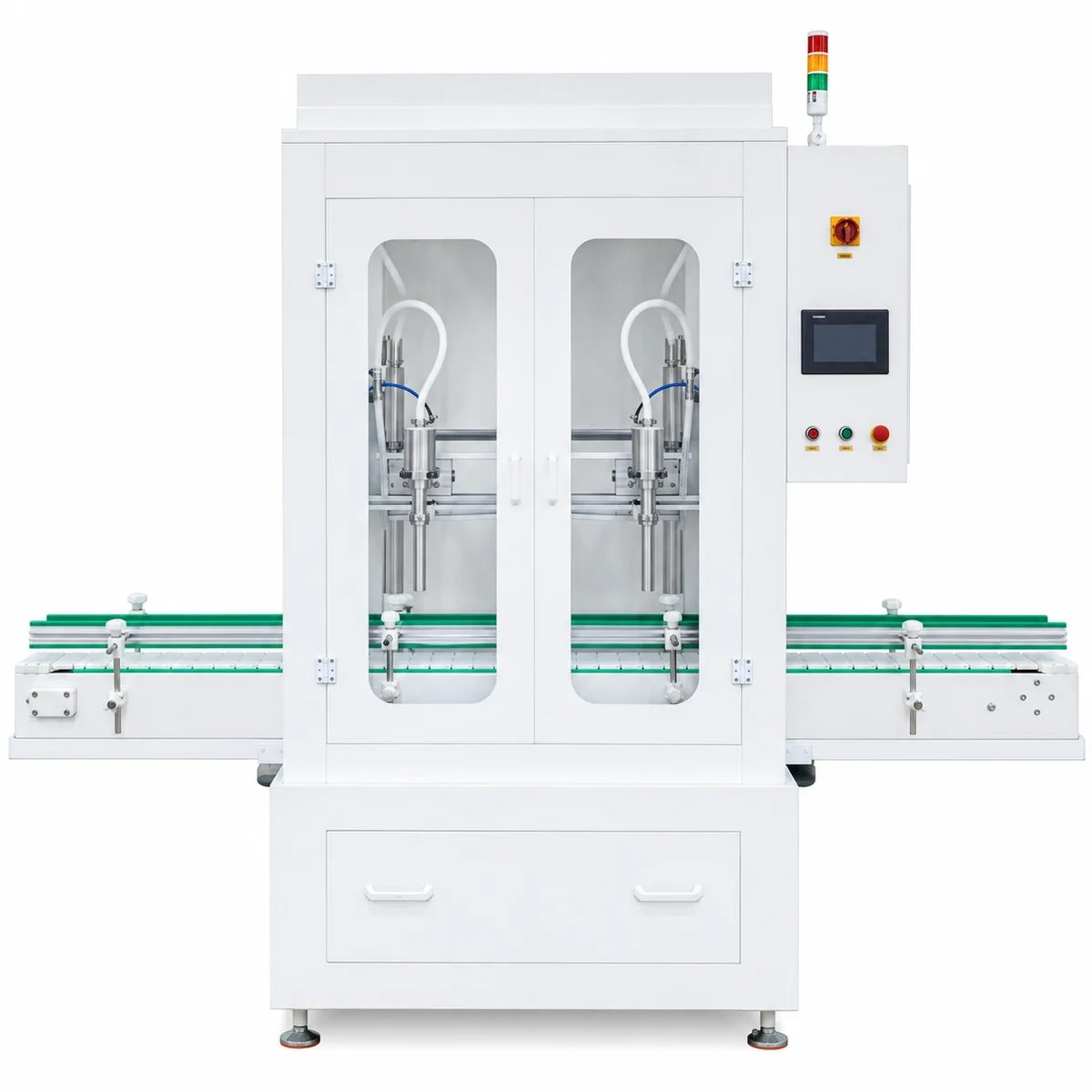

2-Head Anti-corrosion Filling Machine

2-Head Anti-corrosion Filling Machine

Gear pump / gravity filling
Filling Range50-30000 mL
Filling Heads2
Speed15-20 Bottles/Min
Accuracy±1%

Reference configuration, not a confirmed quotation.Working range and output depend on the product, filling volume, container and line conditions. Confirm chemical composition or safety data and wetted-material compatibility before final selection. How to read these parameters

Filling Features

MethodGear pump / gravity filling
Anti-dripYes
Anti-foamYes
Quick CleanYes

Bottle & Application

Suitable LiquidCorrosive chemical liquids, pesticide liquids, disinfectants and agrochemical liquids
Bottle TypeContainer suitability requires sample review
Mouth Range15-100mm
Capacity50-30000 mL

Machine Specification

AutomationFully automatic
IndustryDaily chemical cleaning/disinfection, agriculture and chemical industry
Machine304 stainless steel
Contact316 stainless steel, PTFE
Voltage380V
Power3 kW
Air Pressure0.6-0.8 MPa
Size1200 x 1200 x 2800mm
CustomizationYes

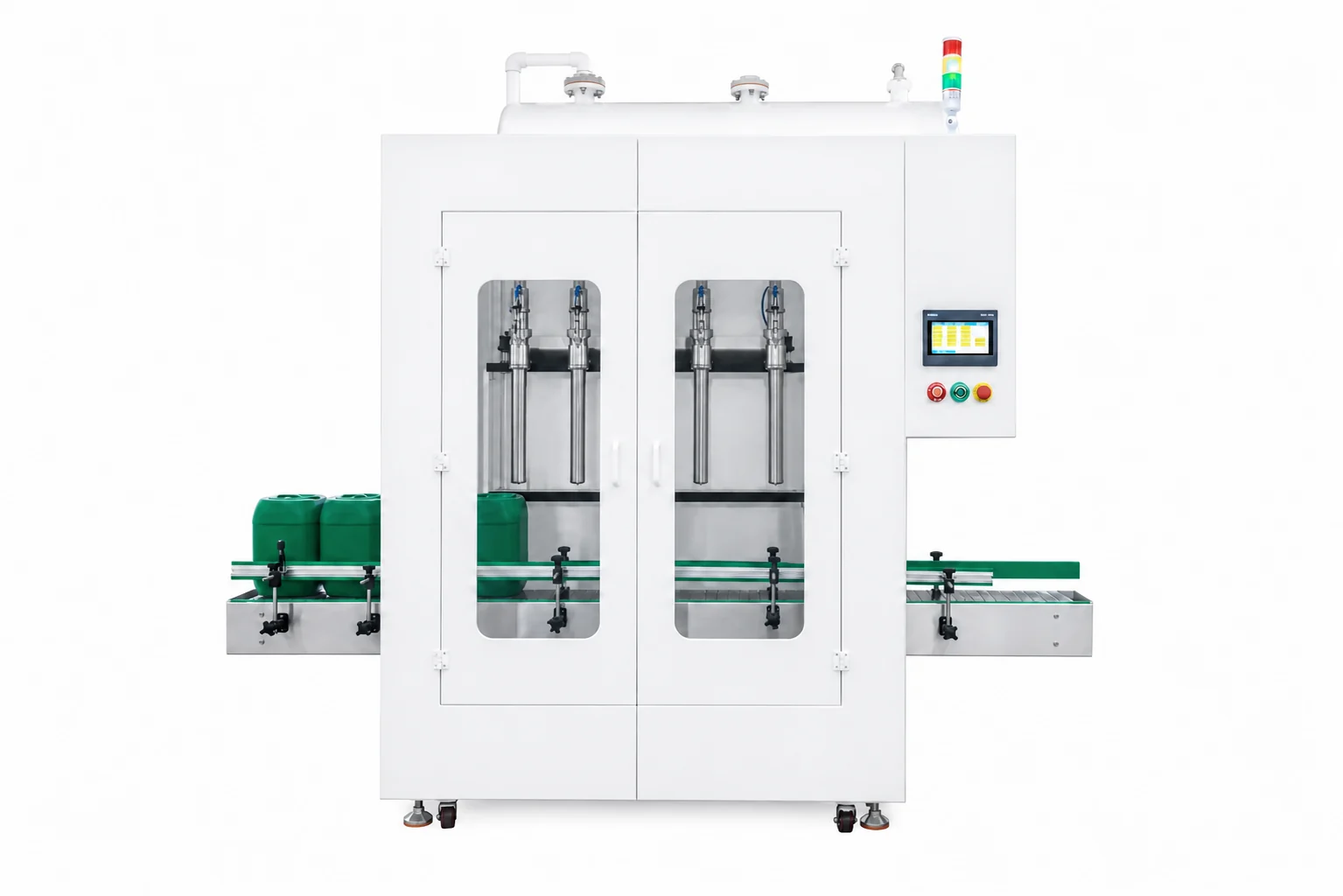

4-Head Anti-corrosion Filling Machine

4-Head Anti-corrosion Filling Machine

Gear pump / gravity filling
Filling Range50-30000 mL
Filling Heads4
Speed20-25 Bottles/Min
Accuracy±1%

Reference configuration, not a confirmed quotation.Working range and output depend on the product, filling volume, container and line conditions. Confirm chemical composition or safety data and wetted-material compatibility before final selection. How to read these parameters

Filling Features

MethodGear pump / gravity filling
Anti-dripYes
Anti-foamYes
Quick CleanYes

Bottle & Application

Suitable LiquidCorrosive chemical liquids, pesticide liquids, disinfectants and agrochemical liquids
Bottle TypeContainer suitability requires sample review
Mouth Range15-100mm
Capacity50-30000 mL

Machine Specification

AutomationFully automatic
IndustryDaily chemical cleaning/disinfection, agriculture and chemical industry
Machine304 stainless steel
Contact316 stainless steel, PTFE
Voltage380V
Power4.5 kW
Air Pressure0.6-0.8 MPa
Size1400 x 1200 x 2800mm
CustomizationYes

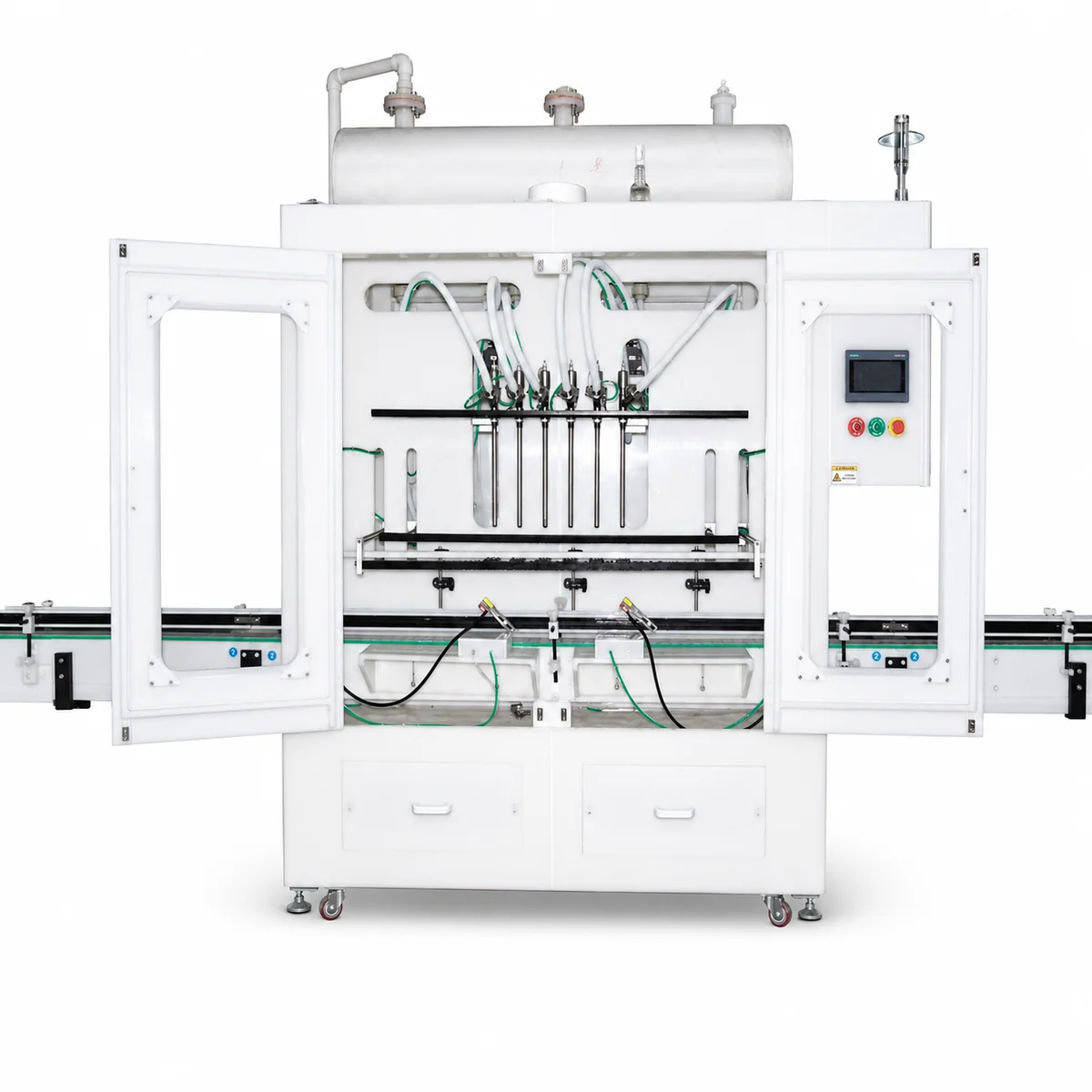

6-Head Anti-corrosion Filling Machine

6-Head Anti-corrosion Filling Machine

Gear pump / gravity filling
Filling Range50-30000 mL
Filling Heads6
Speed30-35 Bottles/Min
Accuracy±1%

Reference configuration, not a confirmed quotation.Working range and output depend on the product, filling volume, container and line conditions. Confirm chemical composition or safety data and wetted-material compatibility before final selection. How to read these parameters

Filling Features

MethodGear pump / gravity filling
Anti-dripYes
Anti-foamYes
Quick CleanYes

Bottle & Application

Suitable LiquidCorrosive chemical liquids, pesticide liquids, disinfectants and agrochemical liquids
Bottle TypeContainer suitability requires sample review
Mouth Range15-100mm
Capacity50-30000 mL

Machine Specification

AutomationFully automatic
IndustryDaily chemical cleaning/disinfection, agriculture and chemical industry
Machine304 stainless steel
Contact316 stainless steel, PTFE
Voltage380V
Power6 kW
Air Pressure0.6-0.8 MPa
Size1600 x 1200 x 2800mm
CustomizationYes

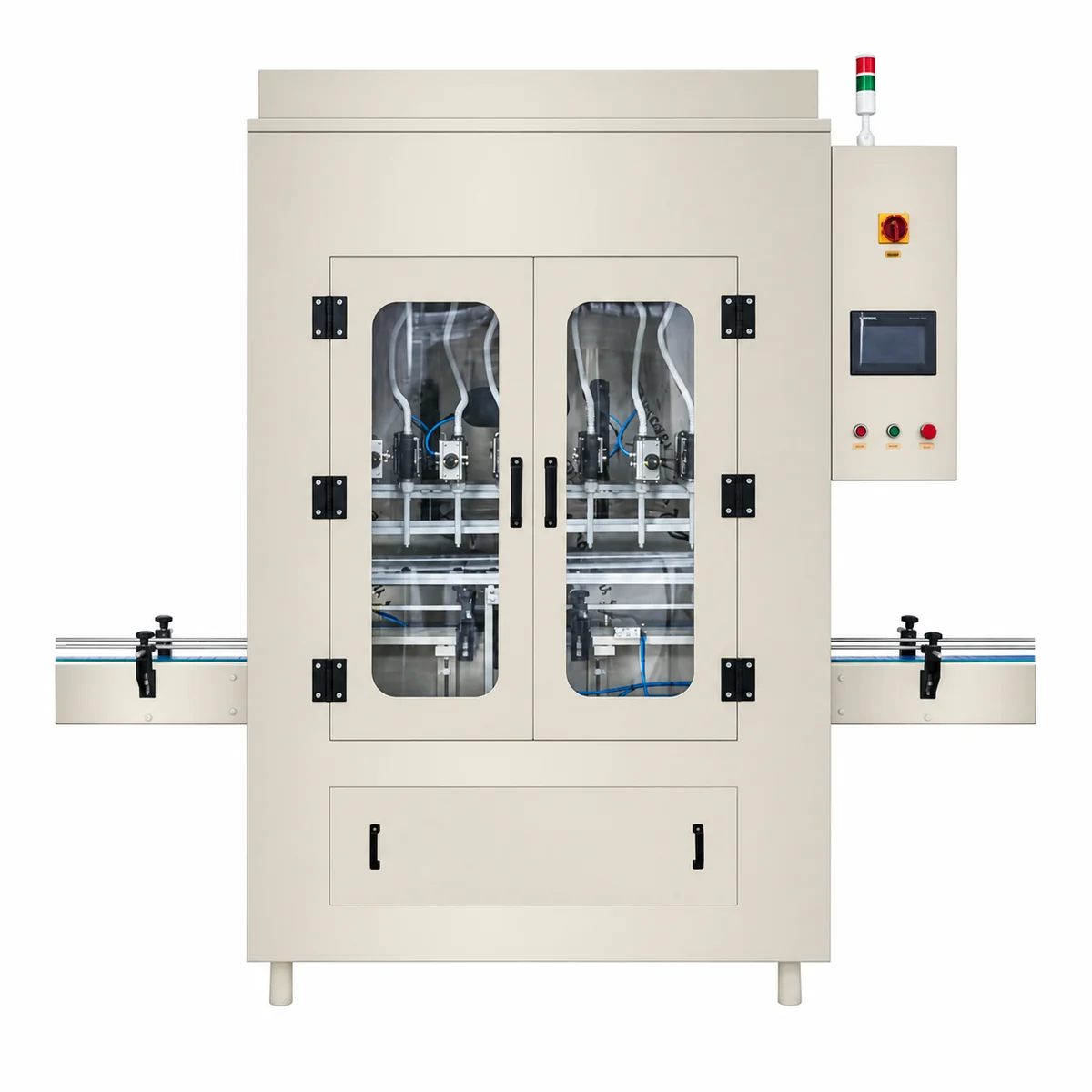

8-Head Anti-corrosion Filling Machine

8-Head Anti-corrosion Filling Machine

Gear pump / gravity filling
Filling Range50-30000 mL
Filling Heads8
Speed35-40 Bottles/Min
Accuracy±1%

Reference configuration, not a confirmed quotation.Working range and output depend on the product, filling volume, container and line conditions. Confirm chemical composition or safety data and wetted-material compatibility before final selection. How to read these parameters

Filling Features

MethodGear pump / gravity filling
Anti-dripYes
Anti-foamYes
Quick CleanYes

Bottle & Application

Suitable LiquidCorrosive chemical liquids, pesticide liquids, disinfectants and agrochemical liquids
Bottle TypeContainer suitability requires sample review
Mouth Range15-100mm
Capacity50-30000 mL

Machine Specification

AutomationFully automatic
IndustryDaily chemical cleaning/disinfection, agriculture and chemical industry
Machine304 stainless steel
Contact316 stainless steel, PTFE
Voltage380V
Power7.5 kW
Air Pressure0.6-0.8 MPa
Size1800 x 1200 x 2800mm
CustomizationYes
10-Head Anti-corrosion Filling Machine

10-Head Anti-corrosion Filling Machine

Gear pump / gravity filling
Filling Range50-30000 mL
Filling Heads10
Speed45-50 Bottles/Min
Accuracy±1%

Reference configuration, not a confirmed quotation.Working range and output depend on the product, filling volume, container and line conditions. Confirm chemical composition or safety data and wetted-material compatibility before final selection. How to read these parameters

Filling Features

MethodGear pump / gravity filling
Anti-dripYes
Anti-foamYes
Quick CleanYes

Bottle & Application

Suitable LiquidCorrosive chemical liquids, pesticide liquids, disinfectants and agrochemical liquids
Bottle TypeContainer suitability requires sample review
Mouth Range15-100mm
Capacity50-30000 mL

Machine Specification

AutomationFully automatic
IndustrySubject to material and configuration review
Machine304 stainless steel
Contact316 stainless steel, PTFE
Voltage380V
Power9 kW
Air Pressure0.6-0.8 MPa
Size2300 x 1200 x 2800mm
CustomizationYes

Food and cream/paste applications are not confirmed for this configuration. Food use requires hygiene and cleaning review; creams and pastes require viscosity, feed and metering review. Corrosion resistance does not establish compatibility with every chemical. Confirm composition, concentration, temperature, viscosity and all wetted parts before selection.

Configuration Logic

What Should Be Confirmed Before Selection?

Same Core Structure

  • Anti-corrosion contact material design
  • Customized filling path
  • PLC + HMI control
  • Automatic filling nozzles
  • Line connection capability

Need To Confirm

  • Liquid MSDS and corrosion level
  • Contact material compatibility
  • Bottle and cap material
  • Ventilation and safety requirement
  • Required filling speed
Bottle And Line Matching

Recommended Bottle Types And Line Connection

Recommended Bottle Types

  • Pesticide bottles
  • Chemical bottles
  • HDPE bottles
  • Round bottles
  • Flat bottles
  • Safety cap containers

Recommended Cap Machines

Cap TypeRecommended Machine
Screw capLinear capping machine / tracking capping machine
Pump capAutomatic four-wheel capping machine for tightening; separate pump-head feeding and placement equipment when required
Trigger sprayerTrigger sprayer capping machine
Press capPress capping machine
Large round capFour-wheel servo capping machine
Working Process

How The Anti-corrosion Filling Machine Works

Step 01Bottle feeding
Step 02Bottle positioning
Step 03Chemical-compatible transfer
Step 04Nozzle filling
Step 05Anti-drip control
Step 06Bottle output
Step 07Capping connection
Step 08Labeling connection

The filling machine can work as a standalone filling unit, or connect with capping, labeling, coding and collecting systems to build a complete automatic production line.

Filling Method Value

Why Choose Anti-corrosion Filling?

Main Advantages

  • Designed for corrosive liquid contact
  • Contact material can be customized
  • Suitable for pesticide and chemical liquid
  • Reduces corrosion risk

Production Benefits

  • Better machine life for chemical products
  • Safer selection based on liquid sample or MSDS
  • Can connect with chemical capping systems
  • Useful for agrochemical packaging lines
After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your Anti-corrosion Filling Machine For Pesticide, Chemical And Corrosive Liquids. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

For industry-specific planning, review our agrochemical packaging solutions and the pesticide filling, capping and labeling line.

Send Project DetailsView Information Checklist
  1. Recommended configurationMachine type, head or station quantity and required options.
  2. Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
  3. Written quotationConfirmed scope, available options, exclusions and commercial terms.
  4. Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.
Engineering Definitions

How To Read The Published Anti-corrosion Filling Machine For Pesticide, Chemical And Corrosive Liquids Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Filling range

Published minimum and maximum volumes are selection references. The actual working range is confirmed with the product and container.

Filling heads

Head quantity describes the installed dosing positions; it does not define output by itself.

Speed basis

A sustained bottles-per-minute target must state filling volume, product behavior, bottle format and line conditions.

Accuracy basis

The measuring method, sample count, tolerance and operating conditions are written into the agreed FAT plan.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

  • Approved general arrangement or layout
  • English operation manual
  • Electrical diagram
  • Pneumatic diagram where applicable
  • PLC program backup
  • Agreed FAT criteria and record
  • Operation training
  • Recommended spare-parts list
1 yearWarranty
Within 2 hours, any timeOnline response
Remote + onsiteCommissioning options
Project-specificSpare-parts list confirmed before shipment
Download Engineering DatasheetReview Factory AcceptanceReview engineering evidence
FAQ

Common Questions Before Buying

What information is needed before quotation?

Liquid name, MSDS, viscosity, bottle sample and cap sample are important for material selection.

Can it fill pesticide liquid?

Yes. Pesticide and agrochemical liquids are common applications.

Can contact material be customized?

Yes. Contact parts can be selected according to corrosion level and compatibility.

Agrochemical liquids: see the wetted-material compatibility guide

Is it suitable for food products?

Food filling has not been confirmed for this configuration. Food use requires a separate review of hygiene and cleaning requirements.

Can it connect with capping and labeling?

Yes. It can be integrated into a complete chemical packaging line.

Back To Filling MachinesSend Inquiry
Buyer Selection Guide

Anti-corrosion Filling Machine Selection Answers For Buyers

Best Used For

Disinfectant, cleaner, pesticide liquid, chemical liquid and corrosive products after material compatibility confirmation.

When To Choose It

Choose it when corrosion resistance and safety protection are more important than using a standard stainless steel filling structure.

Not Recommended For

Do not use a standard configuration for unknown acid, alkali or solvent liquids before confirming pH, concentration and material compatibility.

Before Quotation

Chemical name, pH value, concentration, viscosity, filling volume, bottle material, cap type and contact material requirement.
