Tracking Filling Machine For Higher Speed Automatic Filling Lines

Continuous motion filling solution for production lines that need higher output and reduced bottle stop time.

Get A QuoteSend Product & Container DetailsView ConfigurationsDownload Datasheet
Home/Filling Machines/Tracking Filling Machine
Machine Overview

What Is Tracking Filling Machine Used For?

Inline Production

Continuous motion filling for higher output lines

Tracking filling machine follows bottle movement during filling, reducing stop time and improving line efficiency. It is suitable for customers who need faster automatic production.

Continuous MotionHigher OutputLine IntegrationReduced Stop Time
Product And Line Compatibility

Stable Bottle, Product And Closure Examples

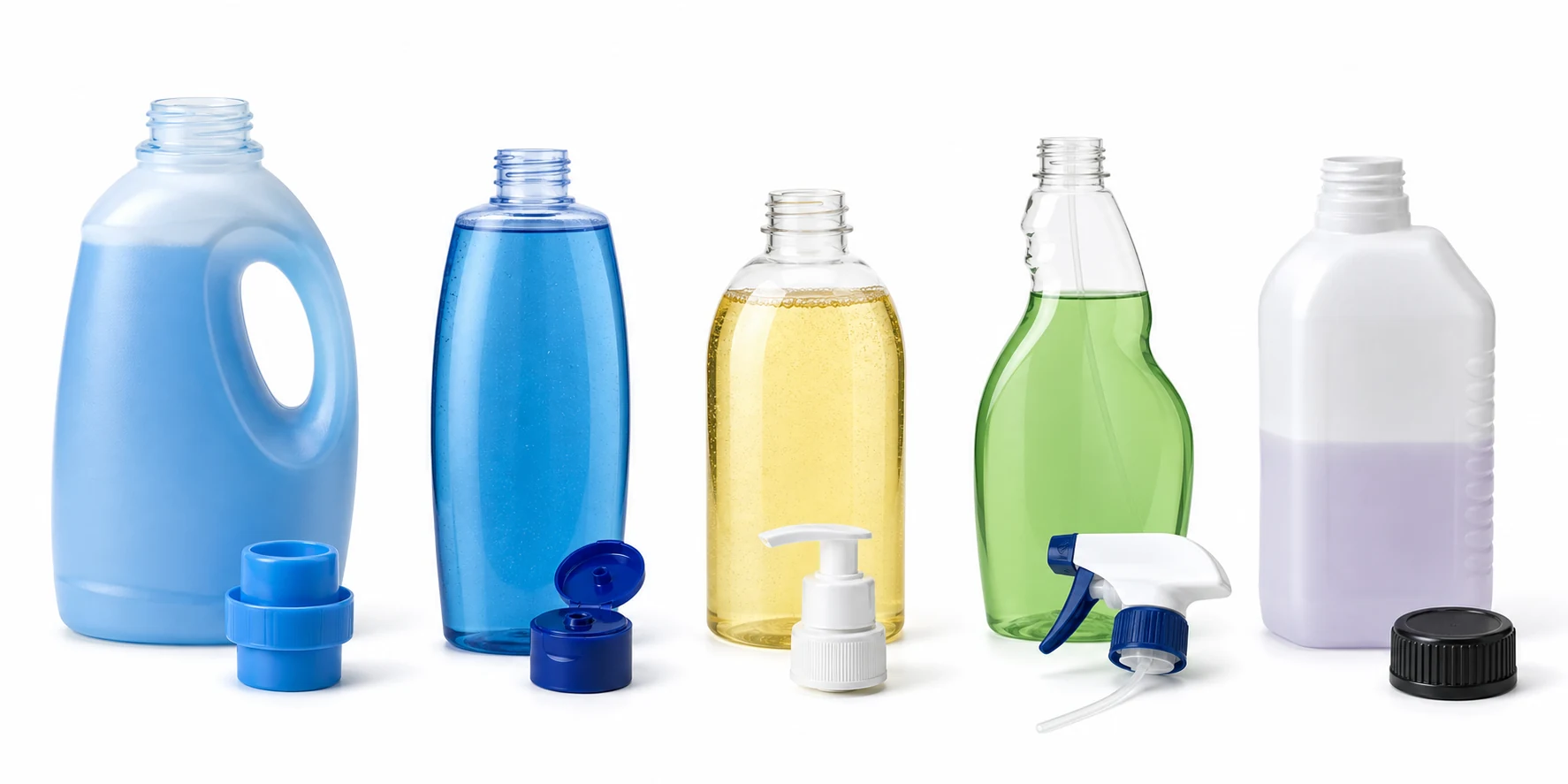

These examples show stable containers and flowable products commonly considered for continuous-motion tracking filling. The metering system is configured around the product.

Detergent, shampoo, liquid soap, trigger cleaner and chemical bottles with separate downstream closures for tracking filling
Actual product behavior, viscosity, filling volume, bottle stability and upstream line control determine the tracking path, metering method and sustainable output. Closure handling is configured downstream.
Laundry DetergentStandard screw closure
Shampoo BottleFlip-top closure
Liquid SoapDispenser pump
Cleaning LiquidTrigger sprayer
Chemical LiquidChemical screw cap
Product Compatibility

Compatibility Depends On The Filling System

Suitable Products

  • Detergent
  • Shampoo
  • Liquid soap
  • Cleaning liquid
  • Chemical liquid
  • Daily chemical products
  • Flowable products matched to the configured metering system

Not Recommended For

  • Unstable bottles that cannot be positioned
  • Very small trial production batches
  • Products requiring special sterile filling
  • Liquids with particles without testing
  • Lines without stable upstream bottle feeding
Machine Configurations

Tracking Filling Machine Configurations

2-head tracking filling machine with open safety doors and conveyor

2-Head Tracking Filling Machine

Tracking filling

Two filling heads follow daily chemical bottles during filling. See the supplied running test for the actual bottle-handling and nozzle movement.

Filling Range50-5000 mL
Filling Heads2
Speed30 Bottles/Min
Accuracy±1%

Shared family configuration is shown below. Output is confirmed against filling volume and product behavior; rated power is 6 kW and machine dimensions are customizable.

Watch 2-Head Running Test

Filling Features

MethodTracking filling
Anti-dripYes
Anti-foamYes
Quick CleanYes

Bottle & Application

Suitable LiquidMedium-to-high viscosity liquids for higher-speed automatic filling lines
Bottle TypeCream jars, personal care bottles, beverage bottles
Mouth Range15-100mm
Capacity50-5000 mL

Machine Specification

AutomationFully automatic
IndustryFood & beverage, daily chemical & personal care, alcohol products
Machine304 stainless steel
Contact316 stainless steel, PTFE
Voltage380V
Power6 kW
Air Pressure0.6-0.8 MPa
SizeCustomizable
CustomizationYes
4-Head Tracking Filling Machine

4-Head Tracking Filling Machine

Tracking filling

The supplied video shows a 4-head rotor-pump tracking filling configuration connected to servo capping. Final specifications are confirmed for the quoted configuration.

Watch 4-Head Rotor Pump Filling + Servo Capping

Filling Range50-5000 mL
Filling Heads4
Speed40 Bottles/Min
Accuracy±1%

Filling Features

MethodTracking filling
Anti-dripYes
Anti-foamYes
Quick CleanYes

Bottle & Application

Suitable LiquidMedium-to-high viscosity liquids for higher-speed automatic filling lines
Bottle TypeCream jars, personal care bottles, beverage bottles
Mouth Range15-100mm
Capacity50-5000 mL

Machine Specification

AutomationFully automatic
IndustryFood & beverage, daily chemical & personal care, alcohol products
Machine304 stainless steel
Contact316 stainless steel, PTFE
Voltage380V
Power6 kW
Air Pressure0.6-0.8 MPa
Size2000 x 1450 x 2200mm
CustomizationYes
6-Head Tracking Rotor Pump Filling Machine

6-Head Tracking Rotor Pump Filling Machine

Tracking Rotor Pump Filling
Filling Range100-1000 mL
Filling Heads6
Speed60-120 Bottles/Min
Accuracy±1%

Filling Features

MethodTracking rotor pump filling
Viscosity Range100-30000 cP
Continuous TrackingYes
CustomizationAvailable

Product & Application

Suitable ProductsPaste, sauce, lotion and viscous liquids
Capacity100-1000 mL; customizable
Output60-120 Bottles/Min
Accuracy±1%

Machine Specification

Contact PartsSUS304 / SUS316L stainless steel
VoltageAC 220V / 380V, 50Hz
Power10-12 kW
Size2400 × 1500 × 2200 mm
CustomizationYes
8-Head Tracking Filling Machine

8-Head Tracking Filling Machine

Tracking filling
Filling Range50-5000 mL
Filling Heads8
Speed60 Bottles/Min
Accuracy±1%

Filling Features

MethodTracking filling
Anti-dripYes
Anti-foamYes
Quick CleanYes

Bottle & Application

Suitable LiquidMedium-to-high viscosity liquids for higher-speed automatic filling lines
Bottle TypeCream jars, personal care bottles, beverage bottles
Mouth Range15-100mm
Capacity50-5000 mL

Machine Specification

AutomationFully automatic
IndustryFood & beverage, daily chemical & personal care, alcohol products
Machine304 stainless steel
Contact316 stainless steel, PTFE
Voltage380V
Power6 kW
Air Pressure0.6-0.8 MPa
Size3000 x 1450 x 2200mm
CustomizationYes
10-Head Tracking Filling Machine

10-Head Tracking Filling Machine

Tracking filling
Filling Range50-5000 mL
Filling Heads10
Speed70 Bottles/Min
Accuracy±1%

Filling Features

MethodTracking filling
Anti-dripYes
Anti-foamYes
Quick CleanYes

Bottle & Application

Suitable LiquidMedium-to-high viscosity liquids for higher-speed automatic filling lines
Bottle TypeCream jars, personal care bottles, beverage bottles
Mouth Range15-100mm
Capacity50-5000 mL

Machine Specification

AutomationFully automatic
IndustryFood & beverage, daily chemical & personal care, alcohol products
Machine304 stainless steel
Contact316 stainless steel, PTFE
Voltage380V
Power6 kW
Air Pressure0.6-0.8 MPa
CustomizationYes
Configuration Logic

What Should Be Confirmed Before Selection?

Same Core Structure

  • Tracking filling motion
  • Automatic bottle positioning
  • PLC + HMI operation
  • Line conveyor integration
  • Custom filling nozzle design

Need To Confirm

  • Target line speed
  • Bottle stability during motion
  • Filling volume and liquid viscosity
  • Available factory layout
  • Capping and labeling machine speed matching
Bottle And Line Matching

Recommended Bottle Types And Line Connection

Recommended Bottle Types

  • Stable round bottles
  • Stable flat bottles
  • Daily chemical bottles
  • Cleaning product bottles
  • Chemical liquid bottles
  • Production line bottles

Recommended Cap Machines

Cap TypeRecommended Machine
Screw capLinear capping machine / tracking capping machine
Pump capAutomatic four-wheel capping machine for tightening; separate pump-head feeding and placement equipment when required
Trigger sprayerTrigger sprayer capping machine
Press capPress capping machine
Large round capFour-wheel servo capping machine
Working Process

How The Tracking Filling Machine Works

Step 01Bottle feeding
Step 02Bottle tracking
Step 03Nozzle synchronization
Step 04Moving filling
Step 05Anti-drip lifting
Step 06Bottle output
Step 07Capping connection
Step 08Labeling connection

The filling machine can work as a standalone filling unit, or connect with capping, labeling, coding and collecting systems to build a complete automatic production line.

Filling Method Value

Why Choose Tracking Filling?

Main Advantages

  • Reduces bottle stop time
  • Improves production efficiency
  • Good for automatic lines
  • Suitable for higher capacity requirements

Production Benefits

  • Better line continuity
  • Can match faster capping and labeling systems
  • Useful for daily chemical production
  • Customized by speed and bottle spacing
Method Comparison

Comparison With Other Filling Methods

Filling MethodBest ForSelection Note
Servo Piston FillingViscous liquid, detergent, shampoo, lotionBest for stable accuracy and medium/high viscosity liquids
Gear Pump FillingLow to medium-viscosity liquid, oil, essenceBetter for precision pump dosing
Peristaltic Pump FillingClean liquid, reagent, essential oilCleaner liquid path and easy tube replacement
Flow Meter FillingLarge-volume low-viscosity liquidBetter for volume metering and larger containers
Rotor Pump FillingViscous and flowing productsBetter for stable transfer of thicker liquids
Anti-corrosion FillingCorrosive chemical or agrochemical liquidBetter material resistance
Real Machine Video

Real Machine Videos

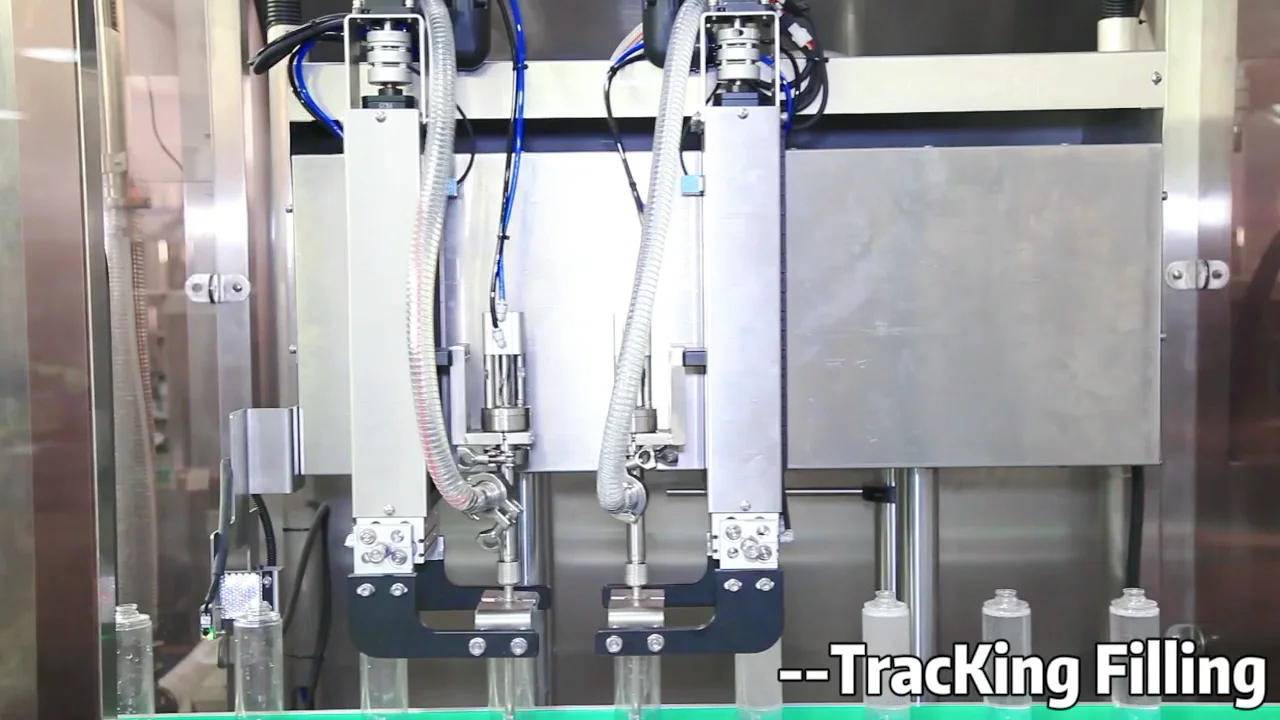

2-head tracking filling test with daily chemical bottles
2-Head Running Test

2-Head Tracking Filling Machine — Daily Chemical Bottles

Watch the two heads follow bottles during the supplied filling test.

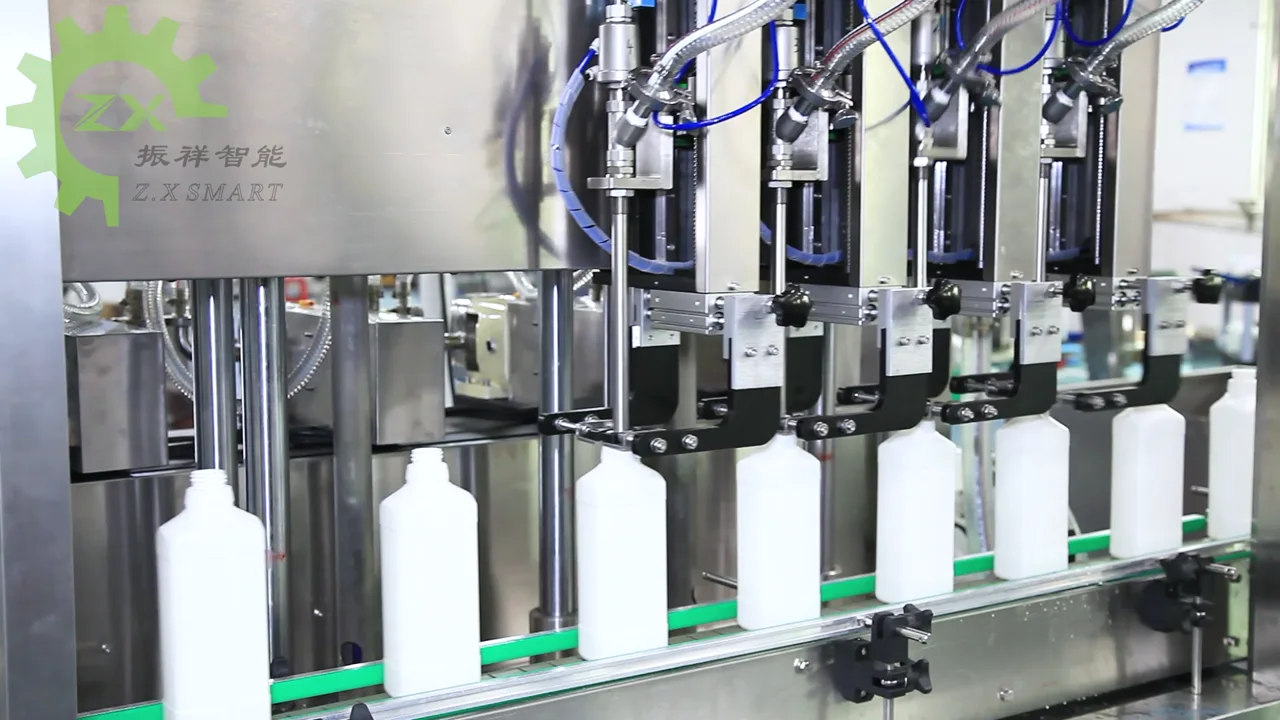

4-head rotor-pump tracking filling line
4-Head Filling And Capping

4-Head Rotor Pump Tracking Filling + Servo Capping

View the supplied filling and servo-capping line configuration.

6-Head Tracking Rotor Pump Filling Machine Running Test
6-Head Rotor Pump Test

6-Head Tracking Rotor Pump Filling Machine Running Test

View rotor-pump metering through six filling heads while they follow bottles on a continuous automatic line.

After the initial engineering review

What You Receive Before Final Configuration

Start with photos, dimensions, product behavior, filling volume and target output for your Tracking Filling Machine For Higher Speed Automatic Filling Lines. Physical containers, closures, labels or product are requested later only when tooling or factory testing requires them.

Send Project DetailsView Information Checklist
  1. Recommended configurationMachine type, head or station quantity and required options.
  2. Preliminary layoutMachine sequence, interfaces, footprint and utility assumptions.
  3. Written quotationConfirmed scope, available options, exclusions and commercial terms.
  4. Test requirement listWhich physical items must be sent later for tooling and FAT, only when required.
Engineering Definitions

How To Read The Published Tracking Filling Machine For Higher Speed Automatic Filling Lines Parameters

The website helps shortlist a machine. Final values are released only after the product, container, closure or label, required output and factory conditions are reviewed.

Filling range

Published minimum and maximum volumes are selection references. The actual working range is confirmed with the product and container.

Filling heads

Head quantity describes the installed dosing positions; it does not define output by itself.

Speed basis

A sustained bottles-per-minute target must state filling volume, product behavior, bottle format and line conditions.

Accuracy basis

The measuring method, sample count, tolerance and operating conditions are written into the agreed FAT plan.

Final handover package

After configuration confirmation, the handover package supports installation, operation, maintenance and acceptance without publishing unconfirmed project values.

  • Approved general arrangement or layout
  • English operation manual
  • Electrical diagram
  • Pneumatic diagram where applicable
  • PLC program backup
  • Agreed FAT criteria and record
  • Operation training
  • Recommended spare-parts list
1 yearWarranty
Within 2 hoursOnline response
Remote + onsiteCommissioning options
Project-specificSpare-parts list confirmed before shipment
Download Engineering DatasheetReview Factory AcceptanceReview engineering evidence
FAQ

Common Questions Before Buying

Why choose tracking filling instead of standard filling?

Tracking filling reduces bottle stop time and is more suitable for higher speed production lines.

Can it fill viscous liquid?

Yes, depending on filling structure and liquid viscosity. Samples should be confirmed.

Does it require stable bottles?

Yes. Bottle stability is important because the machine fills while tracking bottle movement.

Can it connect with capping and labeling?

Yes. It is designed for integrated line production.

How do I confirm speed?

Speed depends on filling volume, bottle spacing, liquid viscosity and line matching.

Back To Filling MachinesSend Inquiry
Buyer Selection Guide

Tracking Filling Machine Selection Answers For Buyers

Best Used For

Products requiring continuous automatic filling-line integration; compatibility with liquids, creams, gels or flowable pastes depends on the configured metering system.

When To Choose It

Choose it when the production line needs higher speed and smoother bottle movement than intermittent filling systems.

Not Recommended For

Not recommended when the bottle is unstable, the target speed is low, or the line layout cannot support continuous bottle positioning.

Before Quotation

Bottle dimensions, filling volume, target line speed, liquid viscosity, conveyor width, capping speed and labeling speed.
